Centralized Visual Computing for Plant-Wide MES, AGV Dispatch & Interactive Kiosks
Key Engineering Highlights
Modern smart manufacturing plants, automated logistics hubs, and intralogistics dispatch rooms require high-impact visual computing nodes that display vast amounts of dynamic operational data simultaneously. Conventional small operator terminals force operators to switch endlessly between fragmented menus, while consumer-grade large televisions lack continuous 24/7 industrial thermal endurance, suffer from image burn-in, and fail to survive aggressive shop-floor electromagnetic noise. Additionally, deploying large displays on overhead factory gantries or inside kiosks is often complicated by loose external power bricks and cable tangles.
The Rostar Tech 43″ Large-Format PCAP Touch All-in-One PC is engineered specifically for centralized factory coordination, digital twin dashboards, and interactive public information hubs. Encased in a hybrid chassis uniting a silver anodized aluminum edge bezel with a heavy-gauge SGCC cold-rolled steel backplate, it provides rugged perimeter impact deflection and superior rigidity against structural flex. Boasting optional 4K Ultra-HD resolution with an anti-glare, edge-to-edge multi-touch surface, integrated 100–240V AC mains power regulation, and a serviceable modular host enclosure, it serves as an ultra-reliable, high-clarity command nexus for uninterrupted 24/7/365 industrial service.

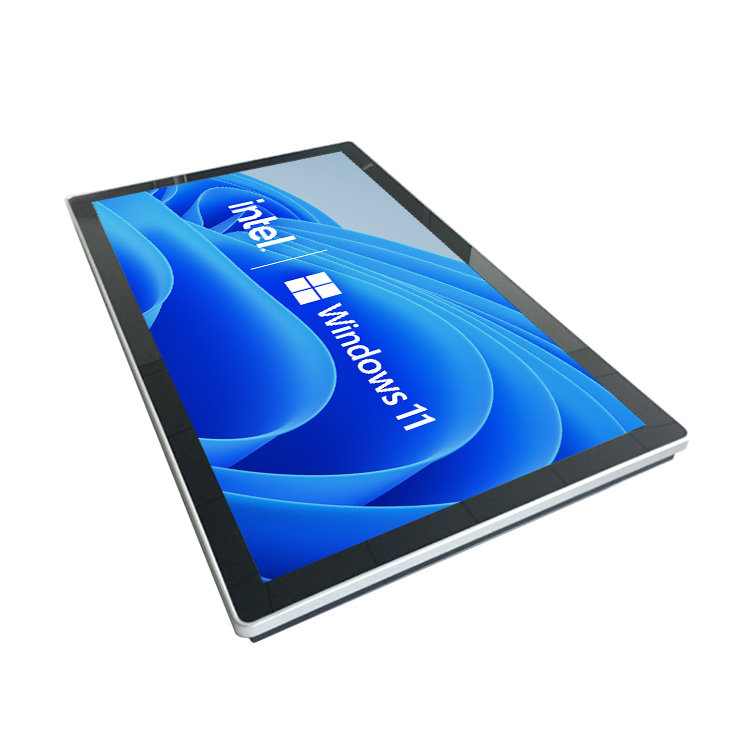

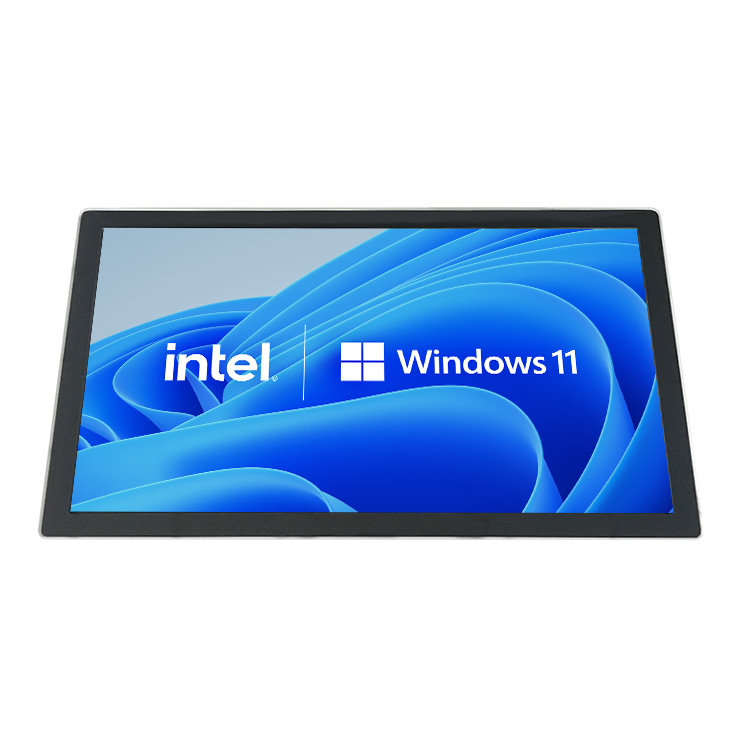

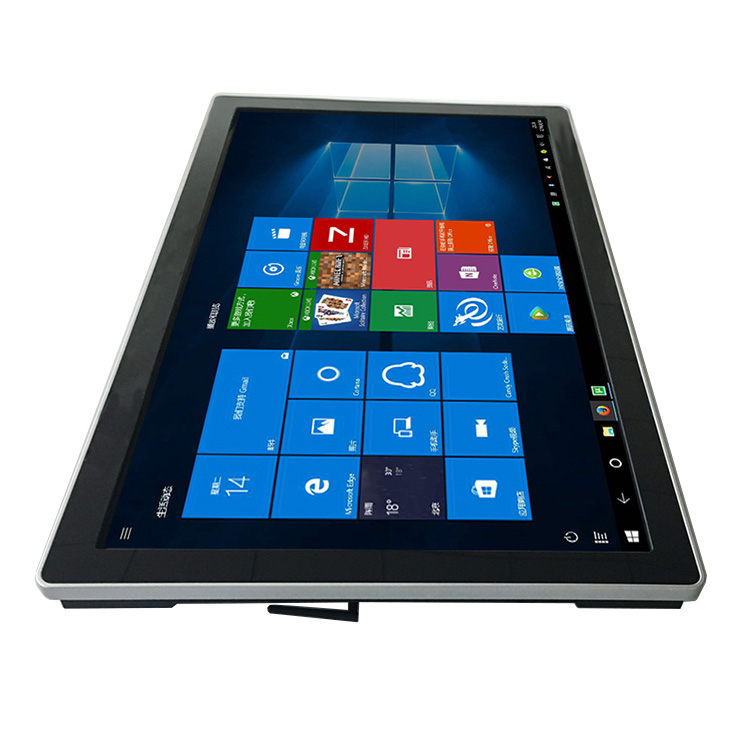

4K UHD Anti-Glare Optical Surface
With high-definition 4K resolution, even the finest details are rendered with clarity; thanks to a wide 178° viewing angle, the content on the screen remains clearly visible regardless of the viewer's position.
Integrated AC 100-240V Power Module
Direct internal power supply circuitry links via a locking IEC power cord, eliminating dangling external power bricks while protecting sensitive processing logic against heavy machinery power surges.
Serviceable Modular Host Box

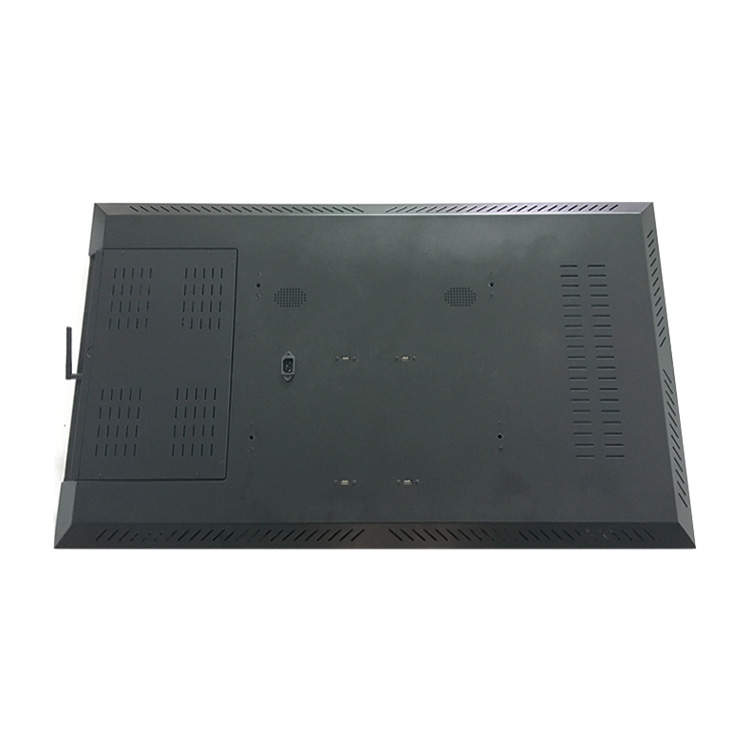

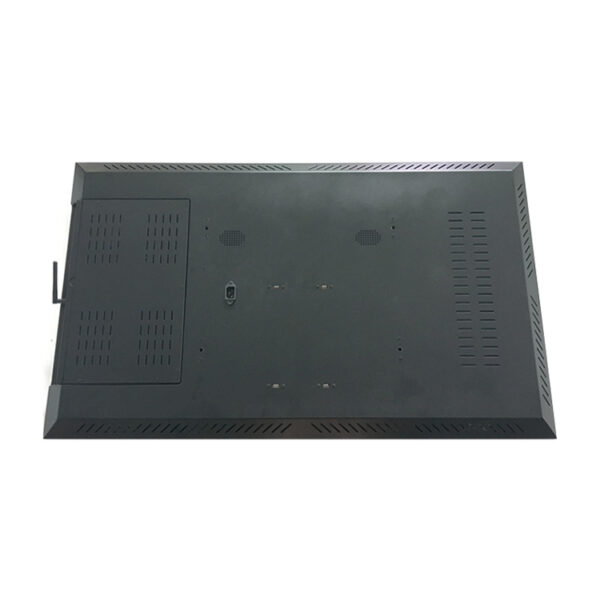

Raised rear electronics compartment isolates CPU and RAM architecture from display backlight heat, allowing rapid shop-floor component upgrades without dismantling the entire 43-inch display assembly.

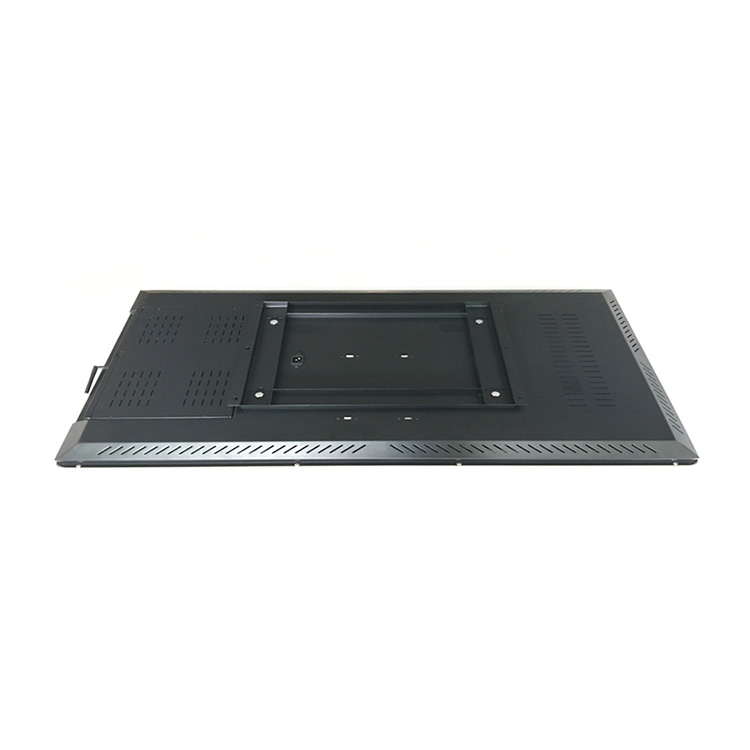

Flexible Heavy-Load VESA Deployment
Precision internal steel reinforcements accommodate standard high-load VESA arms, enabling effortless orientation swapping between horizontal MES dashboards and vertical interactive kiosk displays.
Technical Specifications
| System Parameter | Specification Details |
|---|---|
| Processor Architecture (CPU) | Intel Celeron® J6412 / J6413; Intel® Core™ i3 / i5 / i7 (High-performance multi-core platforms) |
| System Memory | 8GB / 16GB DDR3/DDR4 |
| Solid-State Storage | 128GB / 256GB / 512GB / 1TB M.2 NVMe / SATA SSD |
| Operating Systems (OS) | Windows 10 / 11 Pro, Windows 10 IoT Enterprise, Linux (Ubuntu, Debian, CentOS, RedHat) |
| Display Size & Aspect Ratio | 43" TFT LED LCD (16:9 Format) |
| Resolution Options | Standard FHD 1920×1080 / Optional Ultra-HD 4K 3840×2160 @ 60Hz |
| Viewing Angle & Contrast | 178° (Horizontal) / 178° (Vertical) Ultra-Wide Angle; 4000:1 Contrast Ratio |
| Luminance (Brightness) | 350–500 cd/m² (Optional 1000+ nits High-Brightness for semi-outdoor kiosks) |
| Touch Technology | True-Flat Projected Capacitive (PCAP 10-Point Multi-Touch), Chemically Toughened Cover Glass |
| Optical Treatment | Industrial Anti-Glare (AG) Matte Etch Finish with Anti-Fingerprint (AF) Layer |
| Wireless Connectivity | 1× Gold-Plated SMA Connector with Adjustable 90° High-Gain Dual-Band WiFi/4G Dipole Antenna |

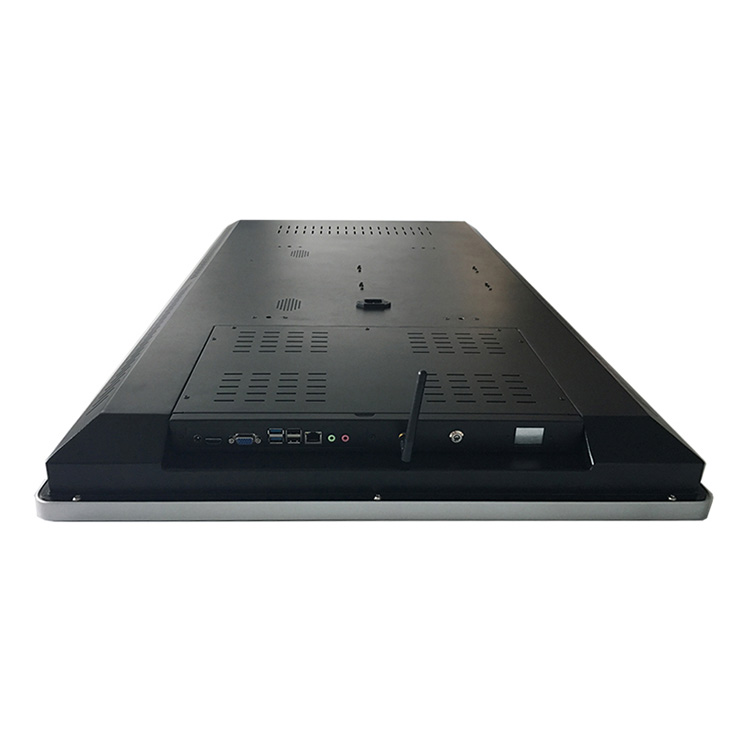

| Standard I/O Layout | 1× RJ45 GbE LAN, 4× USB (2× USB 3.0 + 2× USB 2.0), 1× HDMI, 1× VGA, 1× DB9 RS232 Serial COM, 2× 3.5mm Audio Jacks, 1× IEC C14 AC Power Inlet, 1× Metal Power Button |
| Integrated Audio | Dual Built-in High-Output Industrial Stereo Acoustic Speakers (Rear sound grilles) |
| Power Supply Specification | Direct AC 100V–240V Input, 50/60Hz (Built-in Industrial MeanWell / High-Grade Power Supply) |
| Chassis Material | Precision Silver Anodized Aluminum Perimeter Bezel + Heavy-Duty Matte Black SGCC Steel Housing |
| Display Orientation | Supports Both Landscape (Horizontal Dashboard) and Portrait (Vertical Kiosk) Mounting |
| Mounting Matrix | High-Load Multi-Pattern VESA Matrix (200×200 mm / 400×400 mm Reinforced Steel Backplate) |
| Cooling System | 100% Fanless Passive Thermal Convection (Stamped Bi-Directional Airflow Louver Slots) |
| Continuous Duty Cycle | Engineered for 24/7/365 Continuous Factory Runtime without Backlight Image Burn-in |
| Regulatory Approvals | CE, FCC, RoHS |
Advanced Hardware & Technology
Frequently Asked Questions (FAQ)
Q1: Why is built-in AC mains power significantly better for 43″ industrial displays than external power adapters?
Large 43-inch screens draw considerably more power than small tablets, requiring heavy DC power transformers that generate localized heat and often pull loose from wall mounts. Integrating a heavy-duty AC power supply directly into the chassis enables direct connection to plant AC 100–240V wall outlets via a standard locking IEC cord, removing dangerous cable clutter from high-traffic factory corridors and kiosks.
Q2: Can the 43-inch panel PC be mounted vertically for interactive wayfinding or digital signage?
Yes. The chassis features a completely balanced center-of-gravity design with multi-directional convection airflow louvers and reinforced internal VESA mount patterns. Operators can seamlessly mount the unit in landscape mode for overhead line monitoring or in portrait mode for interactive self-service directories, automated check-in kiosks, and vertical E-SOP stations.
Q3: How does the anti-glare (AG) surface coating perform under bright factory high-bay illumination?
Industrial plants utilize powerful LED overhead high-bay fixtures that cause severe mirror reflections on glossy screens, leading to operator eye strain and reading errors. The chemically etched anti-glare coating on this 43″ screen diffuses specular reflections across a wide 178° viewing cone, ensuring that AGV dispatch paths and complex telemetry graphs remain perfectly readable from any position on the factory floor.
