Engineered for Parking Gate Automation, Line-Side MES Stations & Architectural Access
Modern industrial automation lines, corporate campus perimeters, and automated parking structures require compact, high-reliability human-machine interfaces to register credentials, process transactions, and route production telemetry. However, traditional vertical access controllers force user interfaces into awkward, narrow viewing formats, while external cabling and visible mounting screws leave equipment vulnerable to vandalism, weather ingress, and shop-floor physical impacts. Furthermore, facilities requiring strict privacy compliance often reject access panels with onboard optical cameras in sensitive manufacturing and administrative zones.

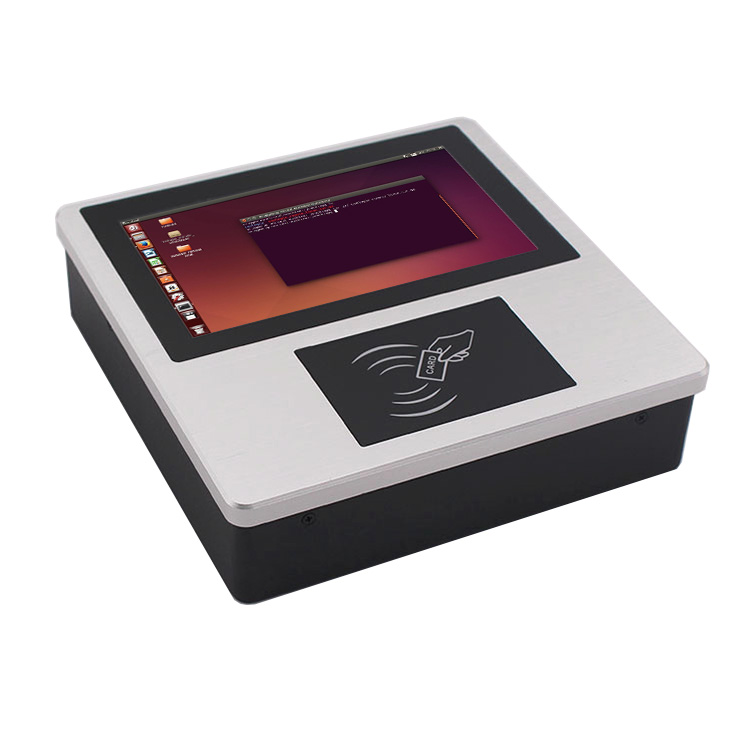

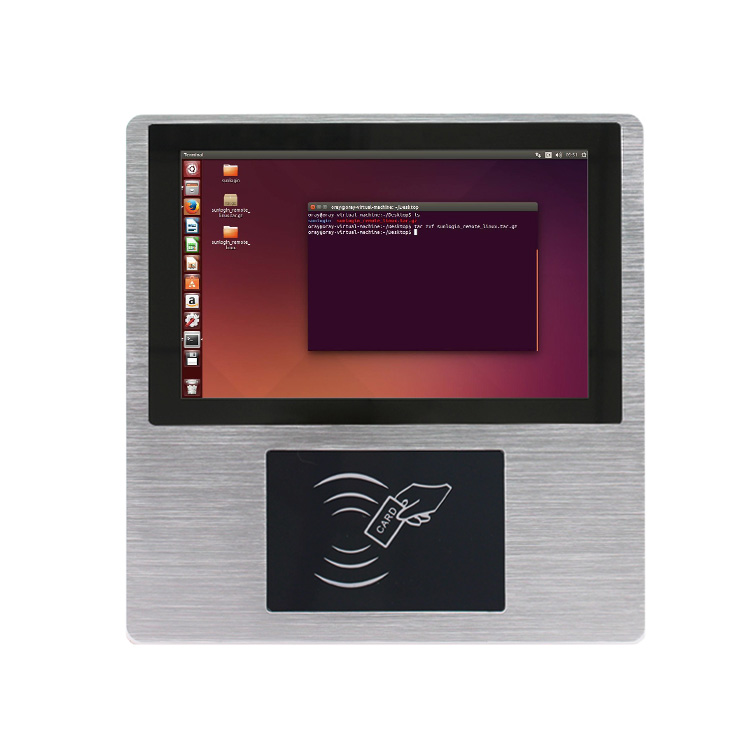

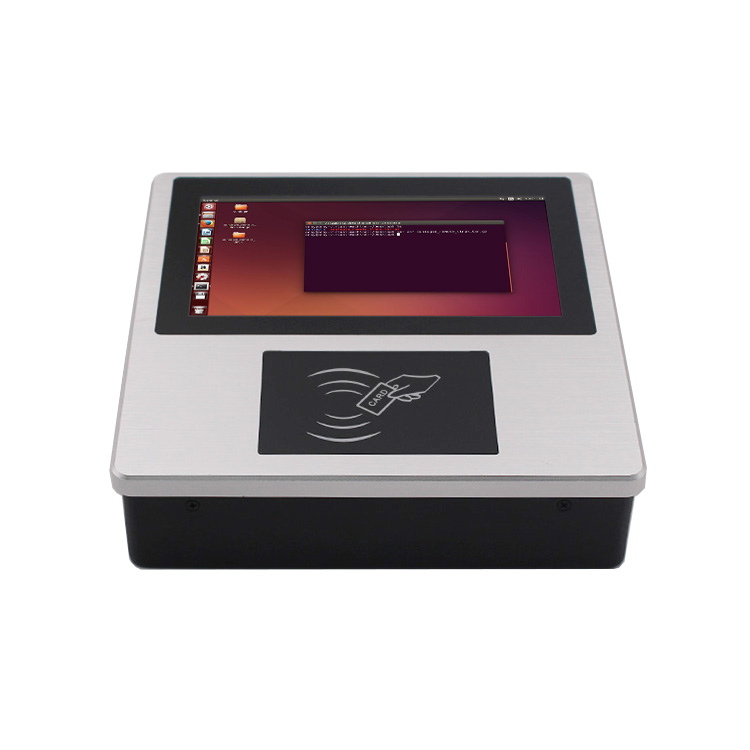

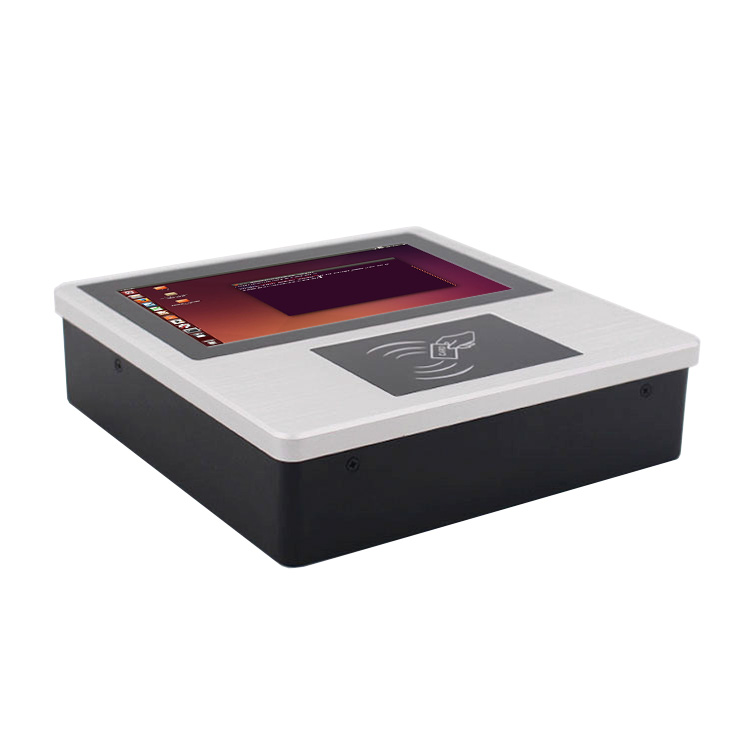

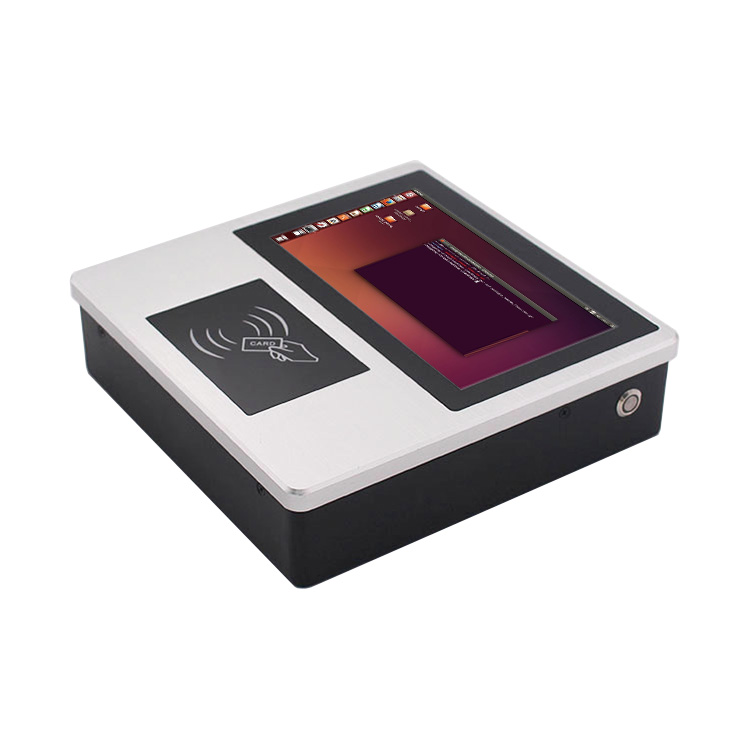

The Rostar Tech 7″ Landscape Smart Interaction Terminal overcomes these operational hurdles through an elegant, high-durability hardware platform tailored for seamless commercial and factory deployments. Distinguished by a screw-free brushed aluminum alloy facade and a native landscape-format capacitive touchscreen, it displays comprehensive operational data, billing information, and 3D work instructions with clarity. Integrating an embedded 13.56MHz RFID/NFC reader, flexible PoE single-cable power architecture, and an innovative two-piece concealed-wiring wall base, this rugged ARM computing terminal delivers zero-maintenance 24/7 continuous uptime across parking barrier pedestals, cleanroom doorways, and line-side MES dispatch points.
Key Engineering Highlights
Modular In-Wall Slide-In Chassis
Rear heavy-duty steel base box installs cleanly into standard wall cutouts or metal pedestals, housing cable connections inside an internal shielded bay before the front display module locks in place.
Optical Bonding & Sunlight Readability
Eliminates internal air gaps to prevent fogging in tropical climates while keeping reflectance below 0.5% in direct sunlight.
Centered Contactless RFID/NFC
Built-in 13.56MHz high-frequency card reader supports the identification of EM4200,Mifare S50 Mifare Desfire,Ultralight Card,HID iclass,sony felica cards.
Ergonomic Landscape UI Layout
Native horizontal display geometry provides standard widescreen aspect ratios for electronic work orders, real-time MES telemetry, and driver parking billing screens without horizontal scrolling.
Technical Specifications
| System Parameter | Specification Details |
|---|---|
| Processor (CPU) | Intel® Celeron® Processor J6412 (Quad-Core, 4 Threads, 2.0GHz base, up to 2.60GHz Burst, 10W TDP, Elkhart Lake) |
| Graphics | Integrated Intel® UHD Graphics for 10th Gen Intel® Processors |
| System Memory (RAM) | 4GB / 8GB / 16GB DDR4 SO-DIMM (High-speed industrial-grade memory) |
| Storage | 64GB / 128GB / 256GB / 512GB M.2 NVMe / SATA SSD |
| Operating System (OS) | Windows 10 / Windows 11 Pro, Windows 10 IoT Enterprise, Linux (Ubuntu, Debian, CentOS) |
| Screen Size & Orientation | 7" TFT IPS LCD (Native Horizontal / Landscape Display Format) |
| Native Resolution | 1024×600 (Wide viewing angle, vibrant 16.7M colors) |
| Brightness | 500 cd/m² (Optional 1000+ nits High-Brightness for semi-outdoor kiosks) |
| Touchscreen Technology | Industrial True-Flat Projected Capacitive (PCAP Multi-Touch), Chemically Toughened Front Glass |
| Touch Endurance | ≥ 50 Million Touch Operations (High anti-scratch 7H hardness, wet-hand operable) |
| RFID / NFC Card Reader | Integrated Multi-Protocol Reader: EM4200 (125kHz), Mifare S50, Mifare Desfire, Ultralight Card, HID iClass, and Sony FeliCa Cards (13.56MHz) |
| Power Architecture | IEEE 802.3at/bt Power over Ethernet (PoE) Support / Direct DC 9V–24V Power Input |
| Industrial I/O Interfaces | 1× RJ45 GbE LAN (PoE Enabled), 2× USB Ports (USB 2.0 / 3.0) |
| Front Panel Construction | Precision CNC Anodized Brushed Aluminum Alloy Plate (Seamless Screwless Front Architectural Aesthetic) |
| Rear Chassis Build | Heavy-Duty Cold-Rolled Steel (SGCC) Housing with Anti-Corrosion Matte Black Powder Coating |
| Cooling System | 100% Fanless Passive Cooling (Densely Stamped Micro-Perforations for Natural Convective Updraft) |
| Operating Environment | -20°C to 60°C (-4°F to 140°F) Continuous 24/7/365 Industrial & Semi-Outdoor Duty |
| Regulatory Approvals | CE, FCC, RoHS |
Advanced Hardware & Technology
Frequently Asked Questions (FAQ)
Q1: What are the distinct advantages of a 7″ landscape screen orientation over traditional portrait formats?
Most industrial software, MES production schedules, and automated parking payment systems are architected around standard horizontal 16:9 or 16:10 resolutions. The native landscape orientation eliminates awkward GUI scaling, text wrapping, and forced vertical scrolling, allowing machine operators and drivers to read full data tables, 3D CAD work instructions, and parking rates at a glance.
Q2: Why is a screwless front facade beneficial for parking pedestals and access points?
In unmonitored parking gates, building entrances, and factory perimeters, exposed front fasteners invite tampering, vandalism, and water penetration. The seamless screw-free aluminum plate delivers a sleek, architectural finish that offers no mechanical pry points from the outside, while internal slide-in brackets secure the housing firmly from the rear.

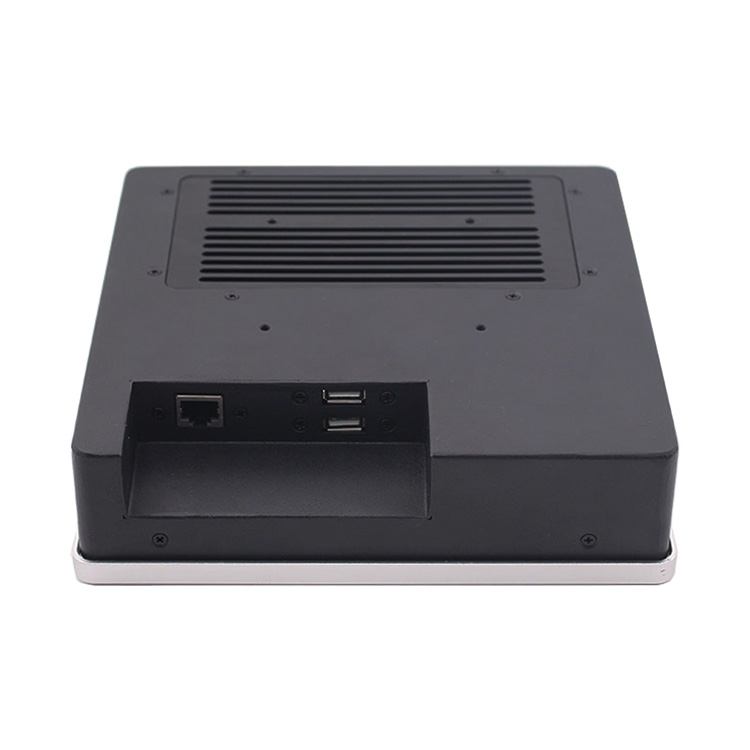

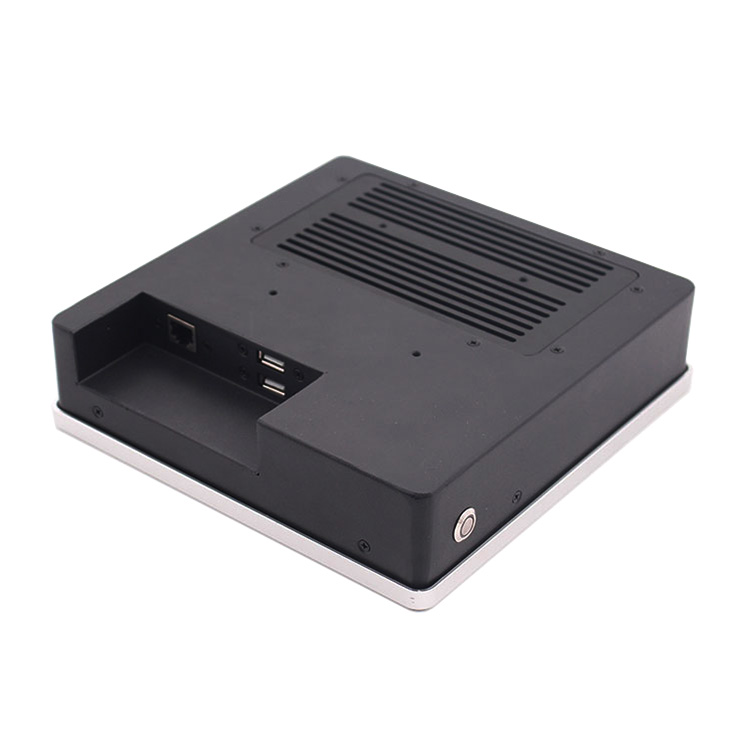

Q3: How does the recessed internal connection bay protect wiring against environmental wear?
Rather than exposing power connectors and RJ45 Ethernet jacks to exterior weather or mechanical tugs, this unit conceals all terminations inside an inset cavity housed within the rear pre-mounted wall box. Network cables and barrier-control wires feed directly from inside the wall conduit, creating a clean, completely sealed installation impervious to physical tampering.
