Specifications:
Operating system | Windows10/11,Linux(Android optional) |
CPU | Intel J1900/J6412/i3/i5/i7 Processor |
Memory | 4/8/16GB DDR3/DDR4 |
Storage | 64/128/256GB SSD |

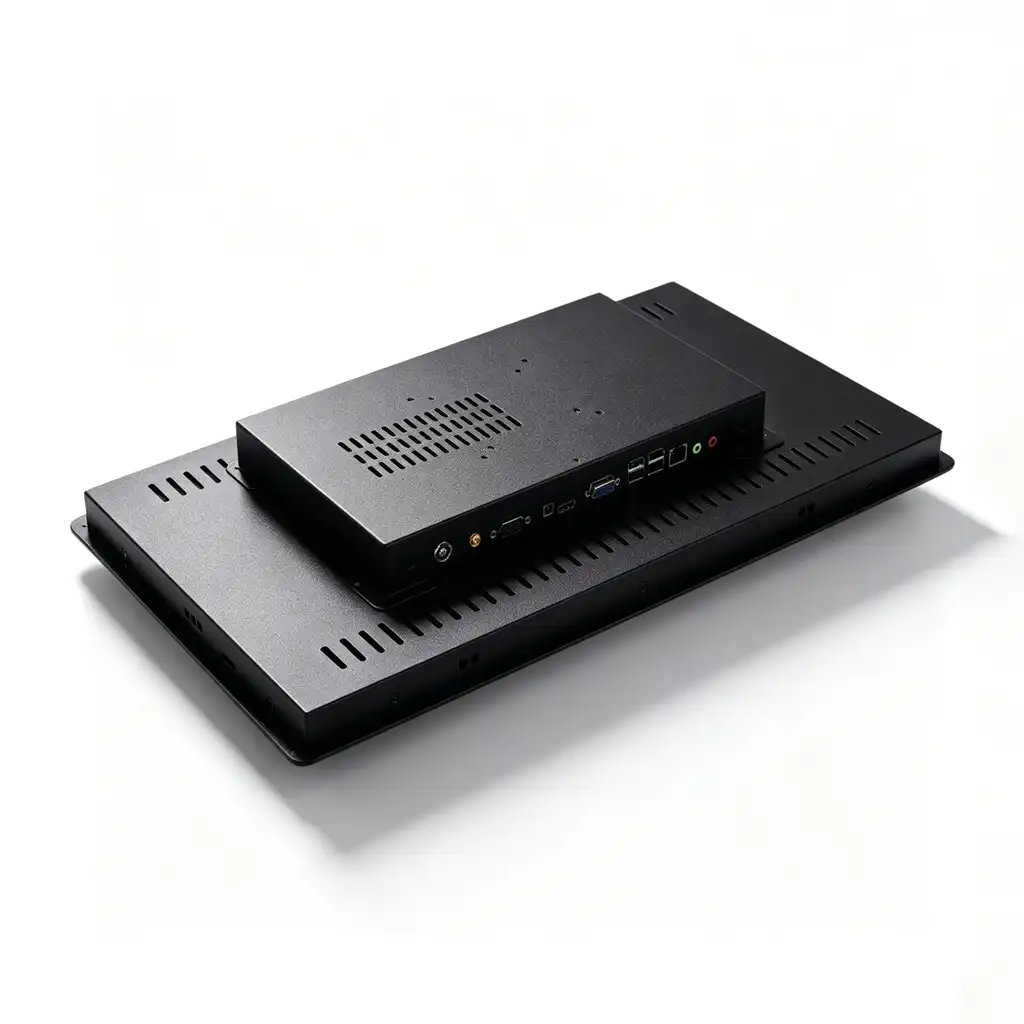

I/O Ports | 1~2*RJ45+4*USB+1*HDMI+1*VGA+1*Audio in/out |
Screen Size | 21.5 Inch (support 7~55 inches) |
Touch type | 10 Points Capacitive Touchscreen |
Resolution | 1920*1080 |
Power Supply | DC 12V Input |
Housing | Front Aluminium Alloy + Rear Metal Case |
Mount | Wall/Embedded Mount |
IP Rating | IPx5 |
Working Temperature | -20~60°C |
Color | Black |
Certificate | CE,FCC,RoHS |
Applications
Factory automation control cabinets — connects to PLCs, displays real-time production data
Machine HMI and operator panels — embedded into machine enclosures for control and monitoring
Production line monitoring — real-time display of line status and parameters
CNC and robotic control systems — operator terminal for programming and adjustment

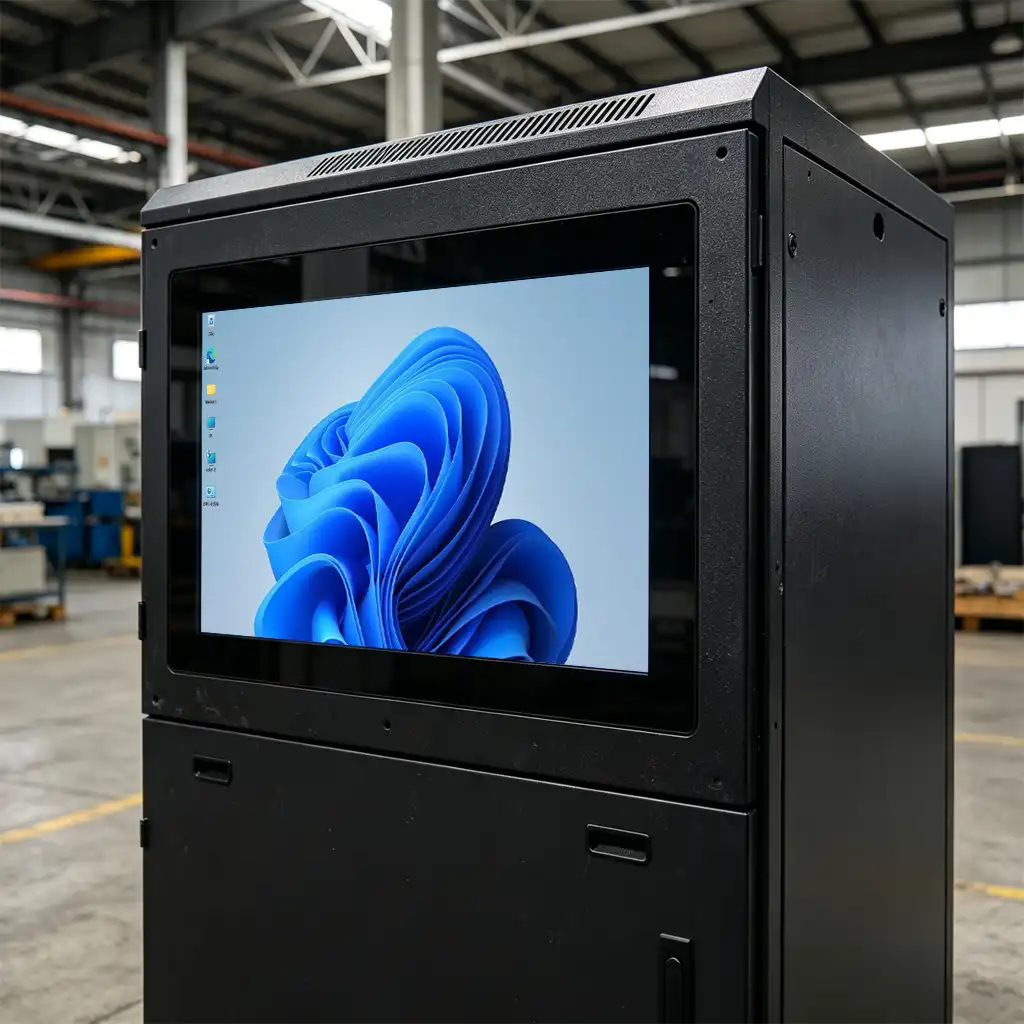

Outdoor kiosk and self-service terminals — flush-mount installation with IP65 front panel
FAQs
Q: What operating systems are supported?
A: Windows 10/11 and Linux. Android is optional. Other systems can be discussed based on your project requirements.
Q: Do you support OEM/ODM customization?
A: Yes. With over 13 years of experience in industrial panel PC and monitor R&D, we provide OEM/ODM services including screen size, CPU, memory, storage, I/O, housing, and branding.
Q: Can I customize the I/O interfaces?
A: Yes. We support custom I/O configurations, including additional COM ports, dual RJ45 LAN, USB 3.0, and other interfaces to match your automation equipment.
Q: What is the minimum order quantity (MOQ)? Do you support samples?
A: MOQ is flexible. Sample orders are accepted for evaluation before mass production.
Q: What is the lead time?
A: Production takes about 15–30 days, depending on order quantity and customization.
Q: Does it support wide-temperature operation?
A: Yes. This embedded touch panel PC operates from -20°C to 60°C, suitable for factory floors, control cabinets, and outdoor automation systems.
