Engineered for Smart Campus Speed Gates, Corporate Headquarters & Secure Architectural Entrances
Modern enterprise campuses, secured corporate headquarters, smart residential communities, and high-end industrial perimeters require high-performance access control endpoints that deliver instant credential verification, crisp video communication, and uncompromised weather resistance. Standard commercial panels often struggle under direct outdoor glare, lack sufficient edge-computing power for local facial recognition, and fail when exposed to rigorous daily security workflows. Furthermore, installations spanning pedestrian speed gates, lobby walls, and architectural pillars demand flexible sizing and multi-protocol credential compatibility.

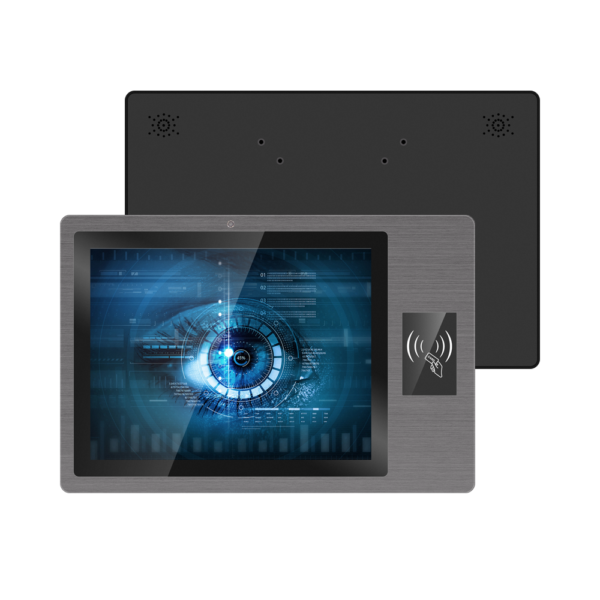

The Rostar Tech Rugged Embedded Smart Access Control Terminal provides a robust, highly scalable hardware platform built for demanding perimeter security deployments. Centered around a versatile 15-inch widescreen footprint with full 7″ to 24″ scalability, it is housed within a premium brushed metal IP65 enclosure. Driven by scalable Rockchip RK3568, RK3576, or RK3588 processors with integrated deep-learning NPUs, it features a 5MP wide-angle camera, universal dual-frequency RFID/NFC reading, 1000-nit optically bonded sunlight-readable glass, and IEEE 802.3af/at PoE integration. This advanced security terminal delivers dependable 24/7/365 operation across turnstile speed gates, entrance pillars, and secure access corridors.
Key Engineering Highlights
7" to 24" Scalable Form Factors
Flexible size configuration centered around a standard 15-inch widescreen model, tailored for seamless integration into slim turnstile gates, walls, and security kiosks.
Dual-Frequency RFID & NFC
Universal contactless reader natively decodes 125kHz and 13.56MHz credentials, including EM4200, Mifare, HID iClass, Sony FeliCa, and mobile phone NFC passes.
1000-Nit Optical Bonding
High-luminance panel with 7H tempered glass and optical bonding eliminates internal air gaps, ensuring crystal-clear outdoor visibility and impact durability.
Rockchip NPU Edge Computing
Scalable SoC options from RK3568 up to RK3588 octo-core with onboard neural processing units, accelerating local biometric matching without cloud dependency.
Technical Specifications
| System Parameter | Specification Details |
|---|---|
| Processor Platform (CPU) | Rockchip RK3568 (Standard) / RK3576 / RK3588 (Octa-Core High-Compute Edge Platform with Dedicated NPU) |
| System Memory (RAM) | 2GB / 4GB / 8GB LPDDR4 / LPDDR4X Industrial Memory |
| Onboard Storage (ROM) | 16GB / 32GB / 64GB / 128GB High-Reliability eMMC 5.1 Flash Storage |
| Operating System (OS) | Android 11.0 / 13.0 / 14.0 (Clean, unbloated architecture for custom APK deployment) |
| Display Size & Scalability | Standard 15" Widescreen Active Matrix TFT LCD (Optional full-range scalable options from 7" to 24) |
| Native Resolution | 1024×768 / 1920×1080 Full HD High-Resolution Visual Rendering |
| Luminance (Brightness) | 500 to 1000 cd/m² (Nits) High-Luminance Sunlight-Readable Panel |

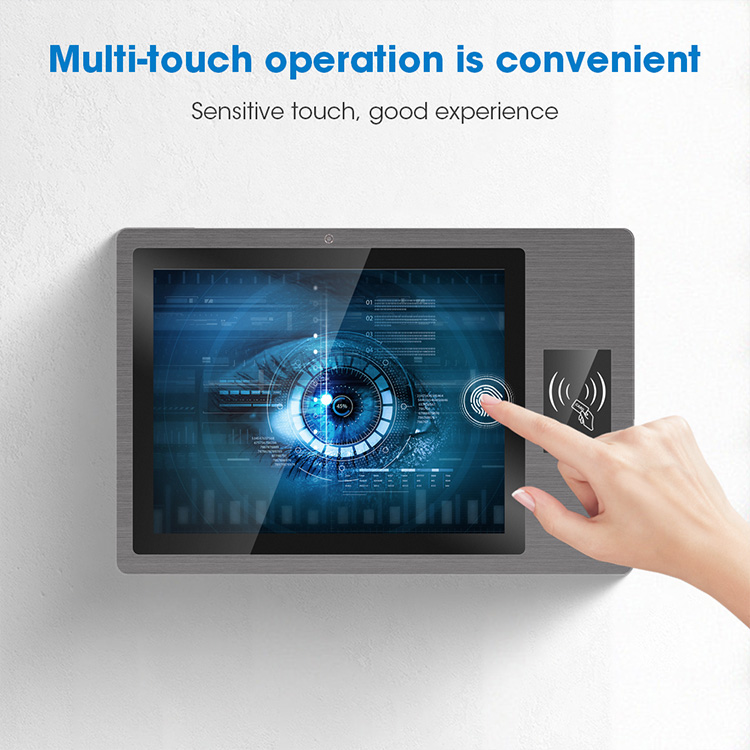

| Optical & Touch Technology | True-Flat Projected Capacitive (PCAP Multi-Touch) with Direct Optical Bonding and 7H Tempered Glass |
| Optical Camera Module | 5.0 MegaPixel Wide-Angle Optical Camera for Precision Facial Recognition & Video Intercom |
| Dual-Frequency RFID & NFC | Universal Multi-Protocol Reader: 125kHz LF & 13.56MHz HF (EM4200, Mifare S50/Desfire, Ultralight, HID iClass, FeliCa, Mobile NFC) |
| Access Control Actuator | Onboard Isolated Relay & Wiegand Output Ports (Direct trigger for electronic locks, turnstiles, and speed gates) |
| Power Architecture | IEEE 802.3af/at Power over Ethernet (PoE) Support / Auxiliary DC 12V Terminal Input |
| Network Connectivity | 1× RJ45 Gigabit Ethernet Port (PoE Enabled) + Integrated Wi-Fi / Bluetooth Wireless Modules |

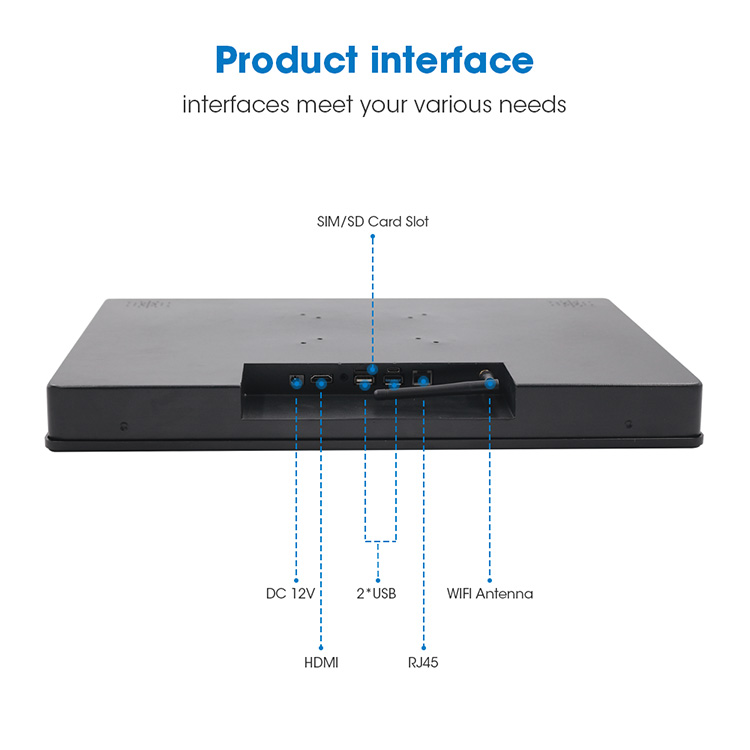

| Recessed Industrial I/O | Concealed Cavity housing HDMI, USB 3.0, DC Power, LAN, and Isolated Relay ports (Zero cable protrusion) |

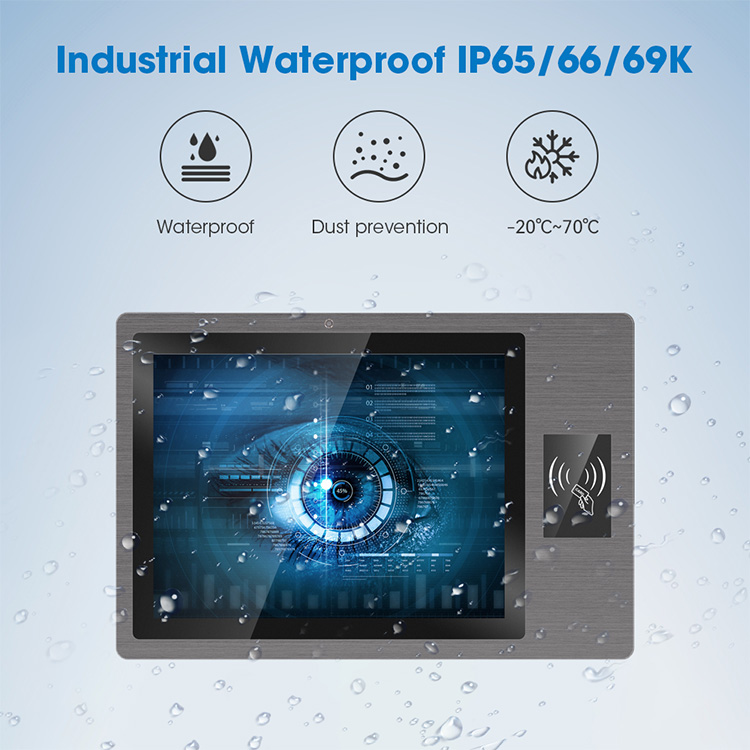

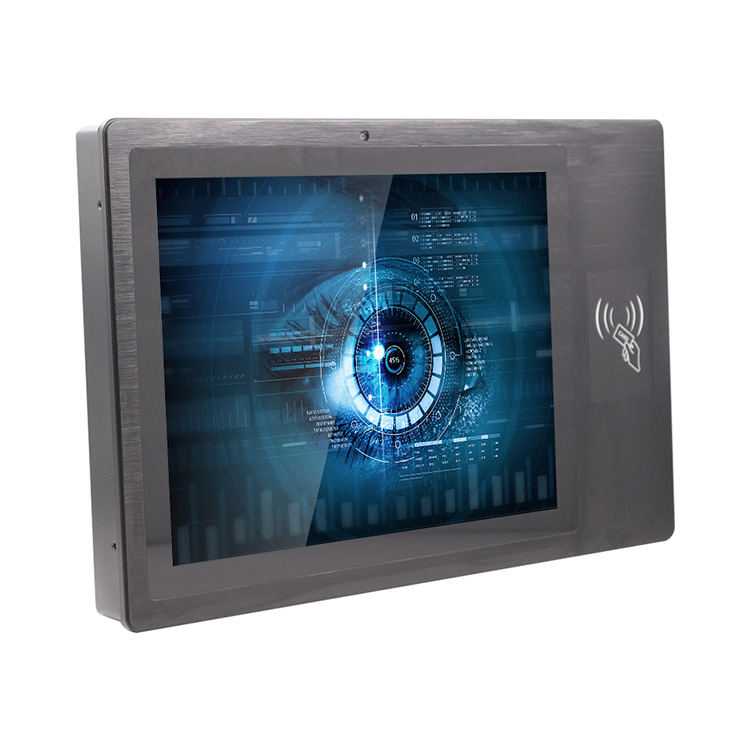

| Enclosure Construction | Precision Brushed Metallic Alloy Front Bezel with Heavy-Duty Cold-Rolled Steel Rear Housing (IP65 Rated) |

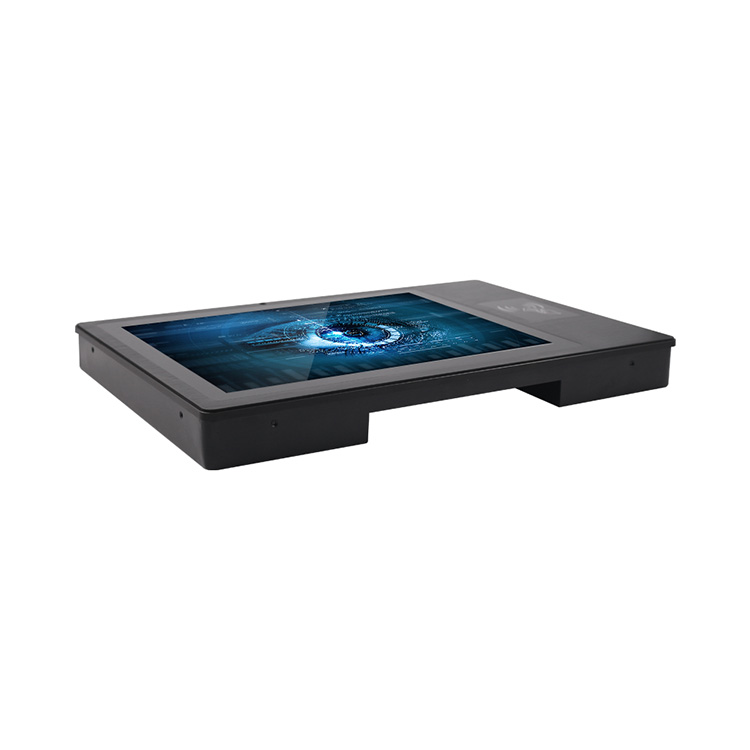

| Mounting Architecture | Flush Internal Panel Mount & Standard VESA 75×75 / 100×100 mm Wall/Arm Articulation |
| Cooling System | 100% Fanless Passive Thermal Convection for Silent, Maintenance-Free 24/7 Duty |
| Operating Environment | -20°C to 60°C (-4°F to 140°F) Continuous All-Weather Outdoor & Indoor Reliability |
| Compliance & Approvals | CE, FCC, RoHS |
Advanced Hardware & Technology
Frequently Asked Questions (FAQ)
Q1: What display sizes are available for this rugged access control terminal series?
While the standard featured model utilizes a 15-inch widescreen display, the product series offers a full scalable range from 7 inches up to 24 inches, allowing system integrators to select the optimal screen real estate for diverse turnstiles, wall recesses, and security desks.
Q2: Which credential technologies and RFID protocols are supported by the integrated reader?
The terminal features a universal dual-frequency reader capable of processing both 125kHz LF and 13.56MHz HF credentials. It provides native compatibility with EM4200, Mifare S50/Desfire, Ultralight, high-security HID iClass, Sony FeliCa systems, and smartphone-based NFC digital passes.
Q3: How does optical bonding improve visibility and durability on the 1000-nit screen?
Optical bonding fills the air gap between the LCD panel and the 7H tempered glass with a solid optical resin[cite: 59]. This eliminates internal light reflections, prevents internal condensation fogging under thermal shifts, boosts sunlight readability up to 1000 nits, and significantly increases impact resistance against heavy physical blows.
Need a Customized Marine or Industrial Washdown Solution?
Get in touch with Rostar engineering team for sample testing, custom pinouts, and volume pricing.
