Engineered for Production Line HMI Control, CNC Machine Tool Integration & Smart Workstations
Modern automated production equipment—such as packaging machinery, CNC machine tools, charging stations, and warehouse logistics sorting desks—requires compact, highly reliable operator touch terminals that integrate seamlessly into restricted control enclosures. Standard commercial displays and poorly sealed industrial computers fail prematurely when exposed to continuous mechanical vibration, floating dust, and fluid splashes on the factory floor. Furthermore, automation engineers require clean, fastener-free front aesthetics and flexible mounting options to match sophisticated machinery designs.

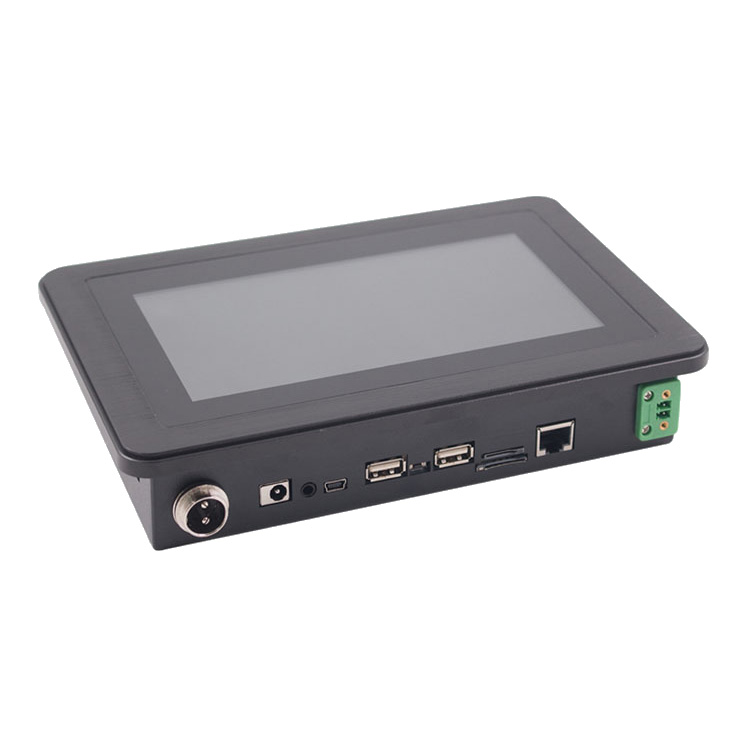

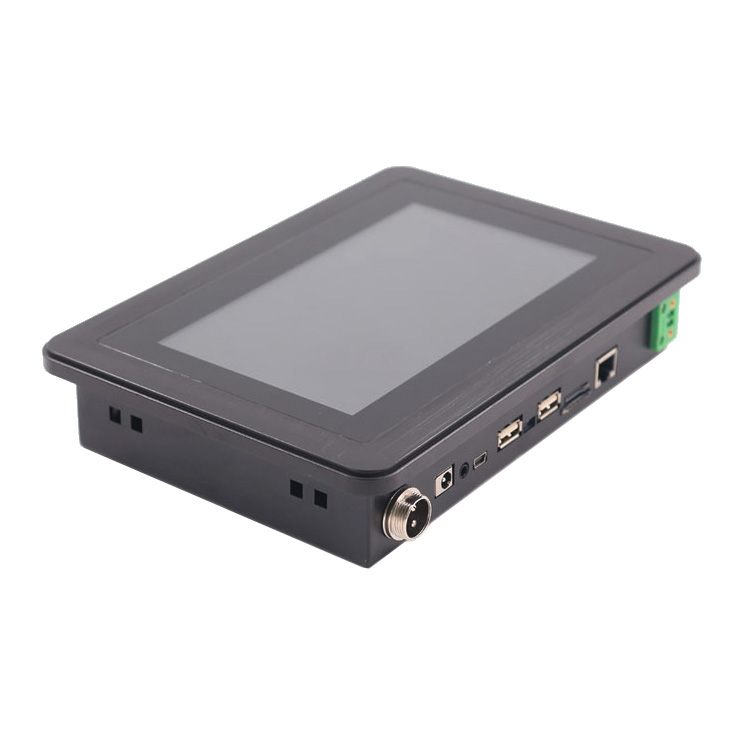

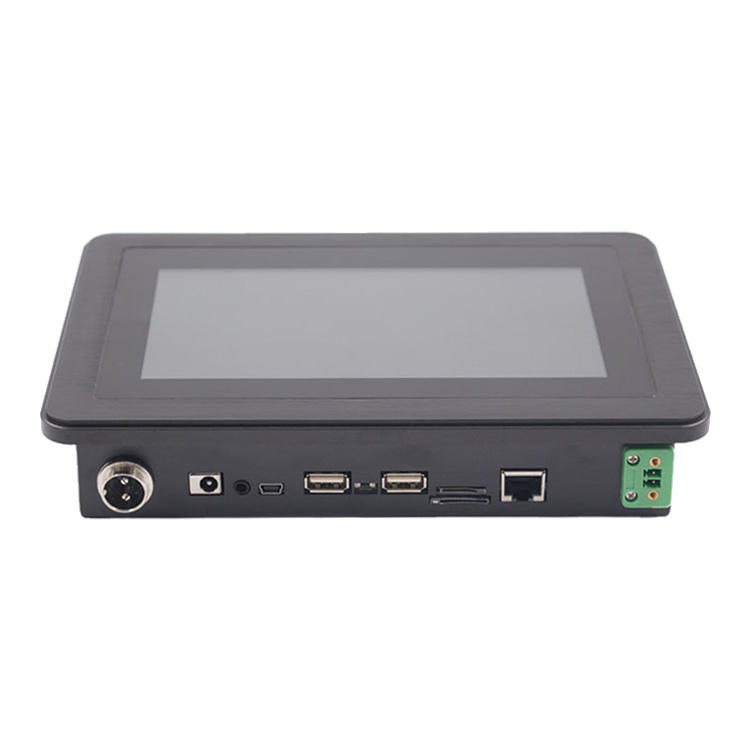

The Rostar Tech Fanless Side-Clamp Embedded Industrial Panel PC provides a robust, highly adaptable computing solution designed specifically for clean-face OEM integration. Featuring a screwless CNC brushed aluminum bezel secured via concealed lateral side-clamps and rear VESA compatibility, it delivers a seamless, professional finish while preserving interior cabinet space. Powered by a flexible open Android or Linux embedded platform, and equipped with an anti-loosening M12 aviation power plug, Phoenix signal terminals, and a gigabit Ethernet port, this vibration-resistant touch terminal delivers reliable 24/7/365 operation across factory automation systems.
Key Engineering Highlights
Concealed Side-Clamp Mount
Hidden lateral mounting brackets secure the panel tightly from inside control enclosures, leaving the front aluminum bezel completely smooth with zero exposed screws.
Open Android/Linux OS
Pre-installed open embedded operating systems allow developers to freely build custom HMI user interfaces and integrate smoothly with mainstream PLC protocols.
M12 Aviation Power
Screw-locking M12 aviation power plug guarantees a stable, shockproof electrical supply that withstands heavy continuous vibration in factory environments.
Rear VESA & Phoenix I/O
Offers standard rear VESA mounting for swing arms alongside a green Phoenix terminal block for direct wiring links to industrial sensors and relays.
Technical Specifications
| System Parameter | Specification Details |
|---|---|
| Processor Architecture (CPU) | High-Performance Industrial Embedded SoC (ARM / x86 Architecture Options) |
| System Memory (RAM) | 2GB / 4GB / 8GB Industrial Grade Memory |
| Storage Options | 16GB / 32GB / 64GB / 128GB High-Speed eMMC / SSD Storage + TF Card Expansion Slot |
| Operating System Support | Pre-installed Open Android / Linux OS (Open source access available for custom firmware development) |
| Display Size & Format | Industrial Active Matrix TFT LCD Touch Display (Optimized widescreen geometry) |
| Native Resolution | 1024×600 / 1280×800 HD Widescreen with Wide Viewing Angle |
| Touchscreen Technology | Industrial True-Flat Projected Capacitive (PCAP Multi-Touch) with Anti-Scratch Surface |
| Power Connection | Industrial M.2/M12 Aviation Power Plug (Anti-loosening and shockproof design under heavy vibration) |
| Signal Control Interface | Green Phoenix Terminal Block (Supports RS485 bus and switching signals for sensors and relays) |
| Network Connectivity | 1× RJ45 Gigabit Ethernet Port for fast PLC communication and data transmission |

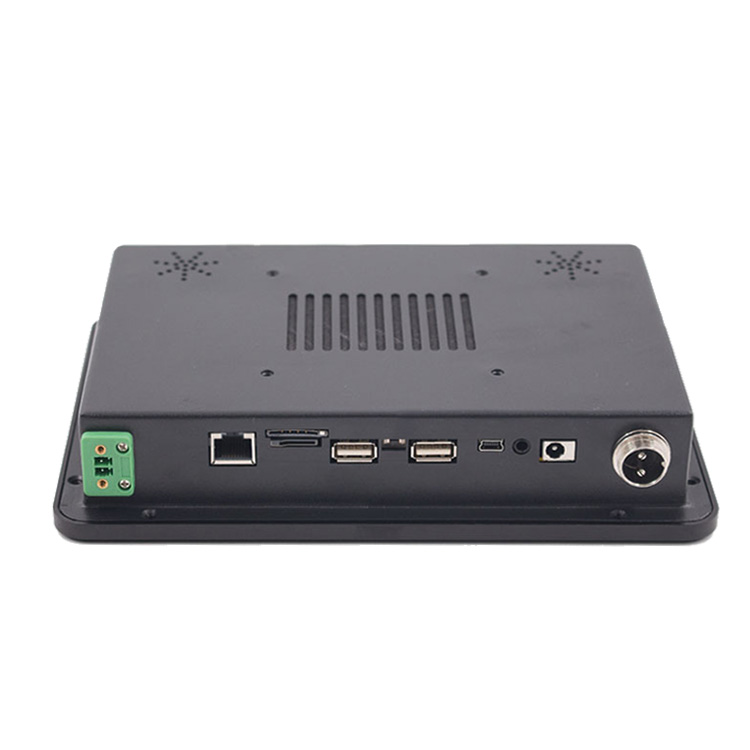

| Peripheral I/O Ports | 2× USB Ports, 1× Type-C (for debugging), TF Card Slot, 1× Audio Output Port |

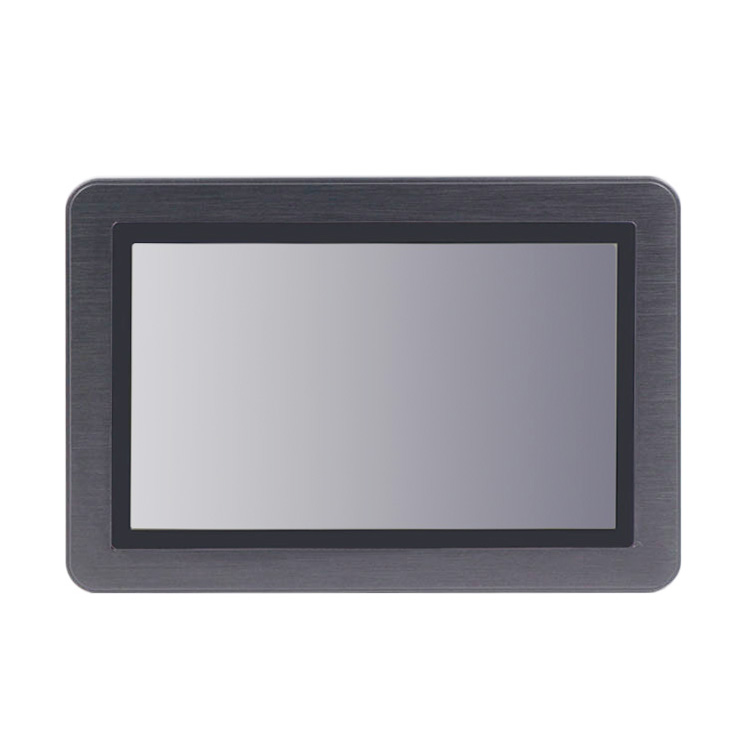

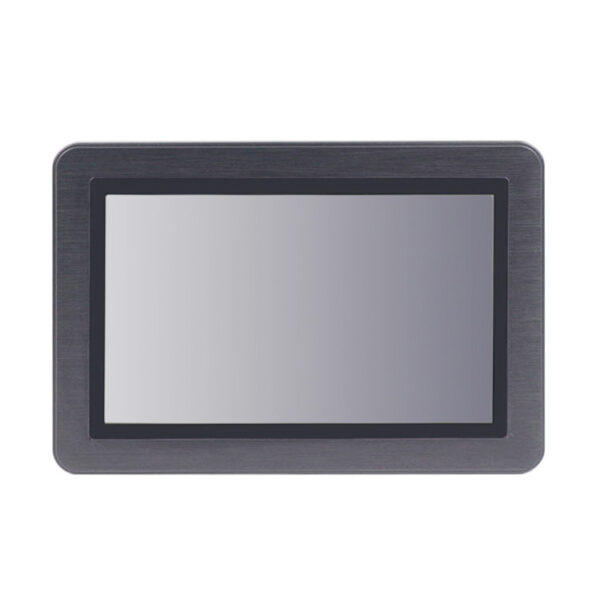

| Front Panel Construction | Precision CNC Milled Anodized Brushed Aluminum Front Bezel (Screwless True-Flat Surface Design) |

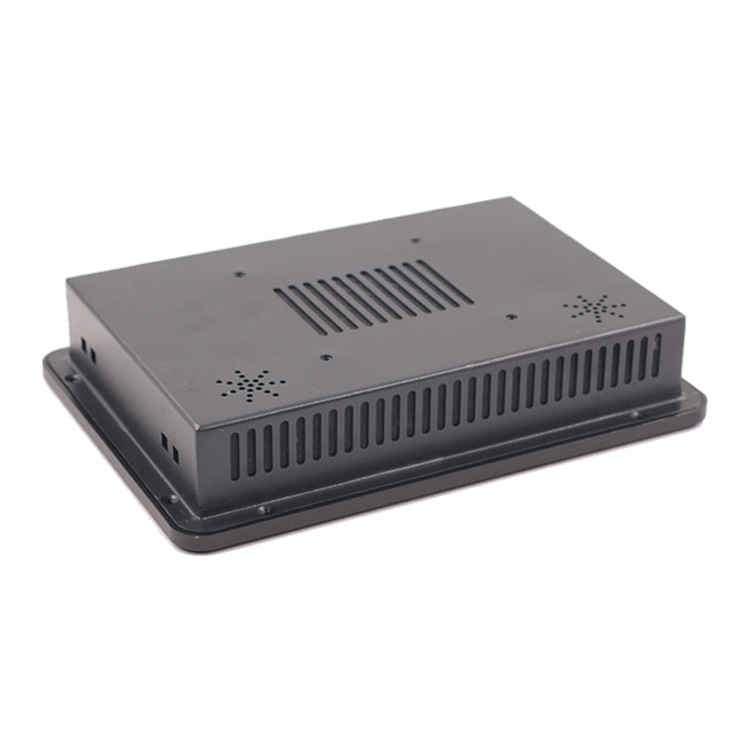

| Chassis Material | Slim Integrated All-in-One Rugged Enclosure with Passive Aluminum Heatsink Fins |
| Mounting Architecture | Concealed Side-Clamping Brackets for Screwless Flush Panel Mount & Rear VESA 75×75 / 100×100 mm Support |
| Cooling System | 100% Fanless Passive Heat Dissipation for Silent, Maintenance-Free 24/7 Operation |
| Operating Environment | -20°C to 60°C (-4°F to 140°F) Continuous Industrial Workshop Duty |
| Compliance & Certifications | CE, FCC, RoHS |
Advanced Hardware & Technology
Frequently Asked Questions (FAQ)
Q1: What are the aesthetic and functional advantages of concealed side-clamping mounting?
Side-clamping brackets secure the touch panel tightly from inside the cabinet enclosure using lateral tension. This eliminates the need for front-facing fastening screws, leaving the CNC brushed aluminum bezel completely smooth and fastener-free. It enhances visual elegance while preventing dust accumulation and liquid pooling around screw heads.
Q2: Why does this terminal use an M12 aviation power connector instead of a standard barrel jack?
Standard DC power jacks can easily vibrate loose in factory environments subject to heavy machinery shocks, causing unexpected system shutdowns. The M12 aviation power plug features a threaded screw-locking mechanism that secures the electrical connection tightly, ensuring uninterrupted power delivery under severe industrial vibrations.
Q3: How does the open Android and Linux operating system benefit automation equipment manufacturers?
Proprietary closed systems restrict software flexibility. By offering an open embedded Android or Linux environment, developers gain full freedom to install custom HMI applications, execute tailor-made graphical user interfaces, and establish direct communication protocols with various PLCs and automation hardware.
Need a Customized Marine or Industrial Washdown Solution?
Get in touch with Rostar engineering team for sample testing, custom pinouts, and volume pricing.
