Engineered for Embedded Enclosures & OEM Kiosk Systems
Standard panel PCs often suffer from awkward integration, bulky bezels, and dust-induced fan failures inside compact enclosures. The Rostar 15.6″ Open Frame Industrial Panel PC delivers a purpose-built, high-reliability embedded computing solution for smart machinery, control cabinets, and self-service kiosks. Featuring an integrated four-sided pre-drilled flange mount design, it bolts directly into metal cutouts with vibration-proof rigidity. Equipped with an industrial-grade fanless aluminum finned chassis and an IP65-rated true-flat 16:9 widescreen touch glass, it guarantees 24/7 silent, dust-free, and maintenance-free operation across demanding factory floors and automated terminals.
Key Engineering Highlights
Pre-Drilled Flange Mount
Integrated 4-sided metal mounting ears with factory-drilled screw holes enable rigid, vibration-proof flush integration into kiosks and cabinet cutouts.

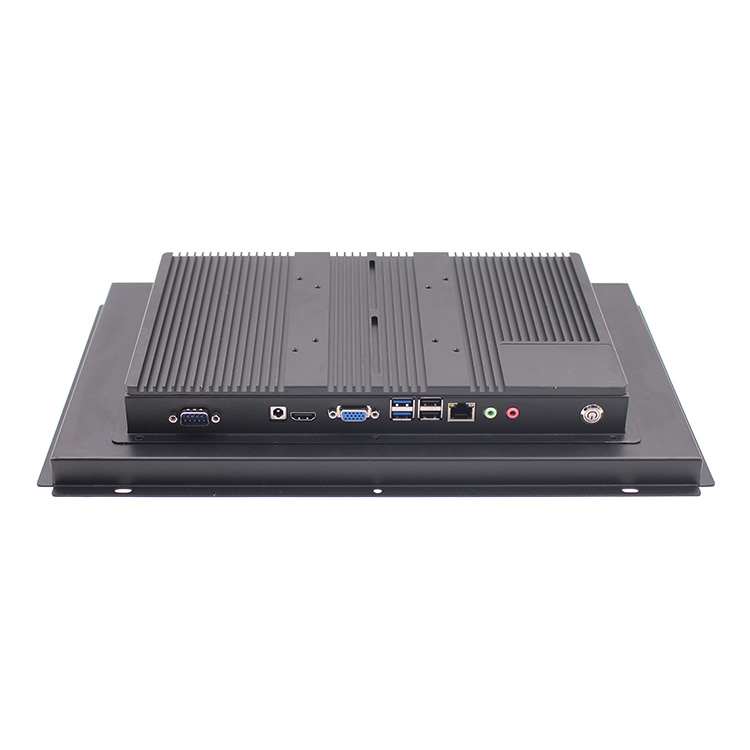

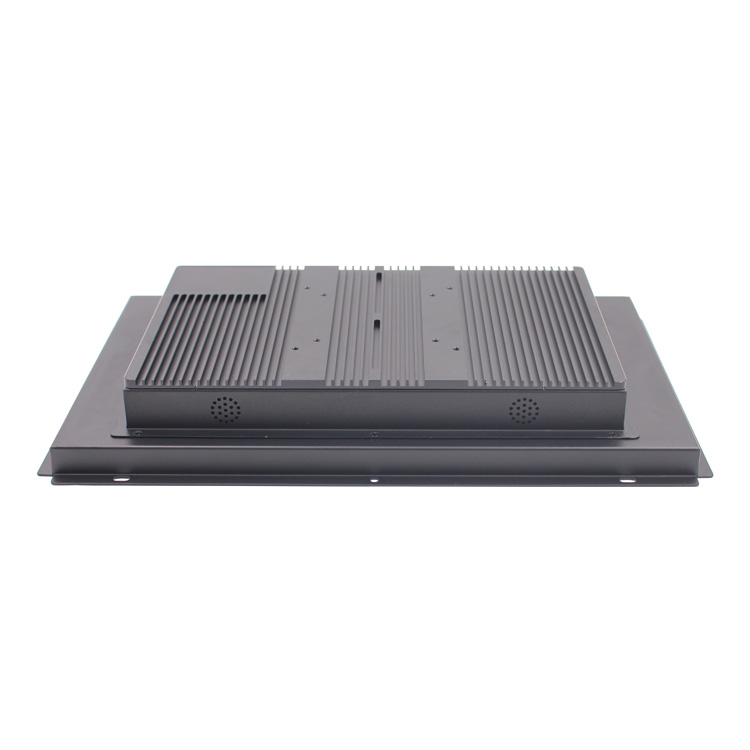

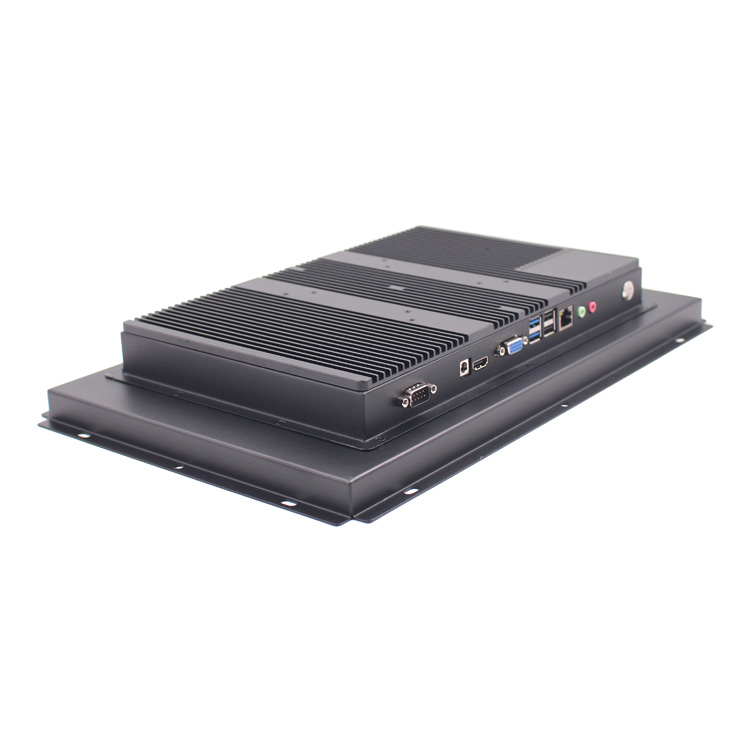

Fanless Passive Thermal Design
Heavy-duty rear aluminum finned heatsink ensures silent natural heat dissipation, eliminating internal dust buildup and mechanical fan failure.

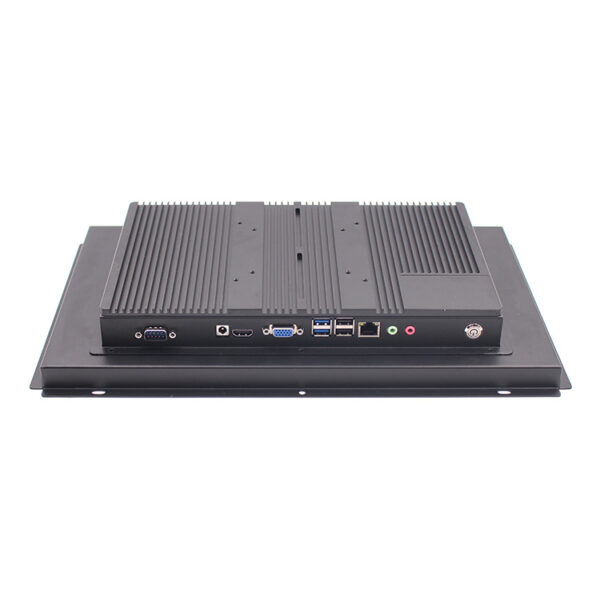

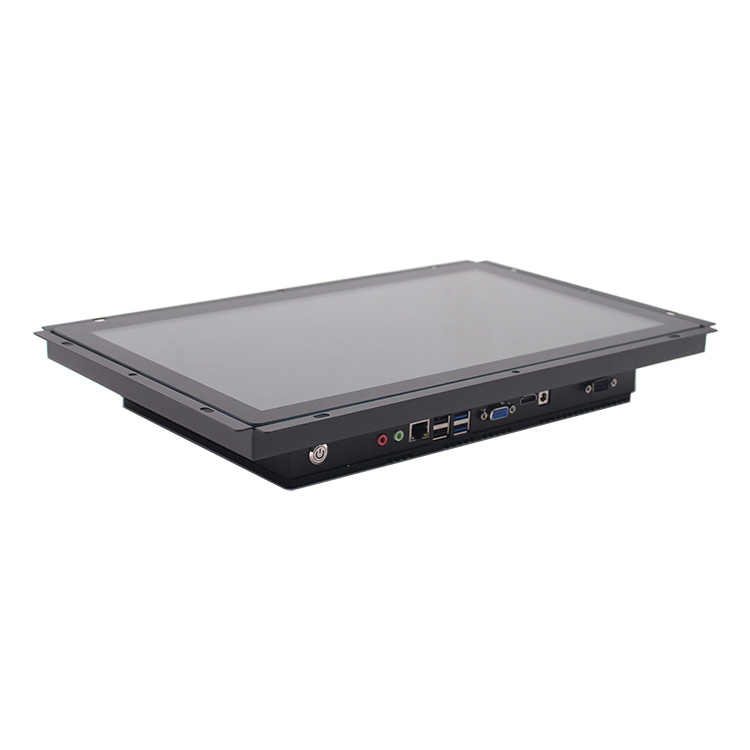

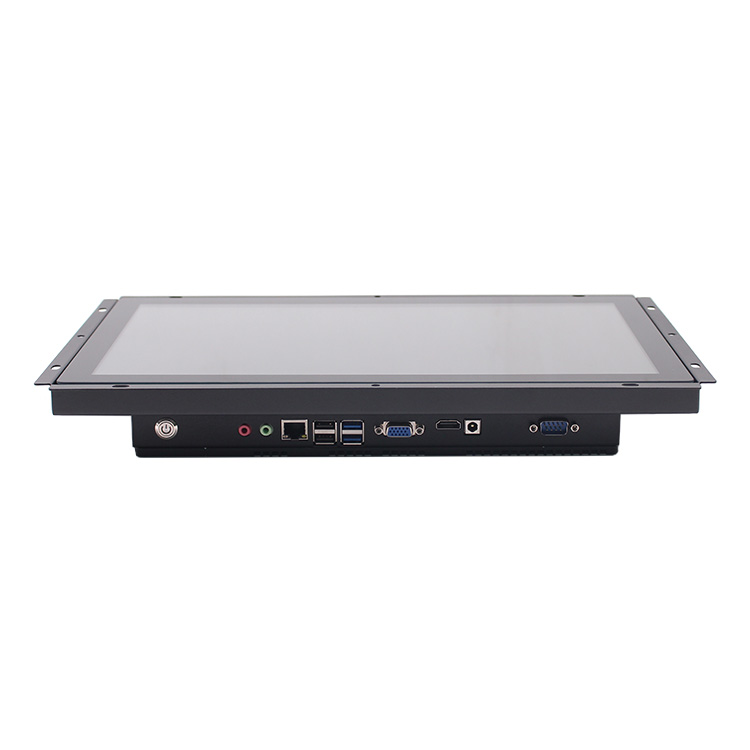

Downward I/O & Dual Display
Recessed downward port layout prevents cable stress, featuring HDMI + VGA dual independent video outputs, GbE LAN, USB 3.0, and a dedicated DB9 COM port.

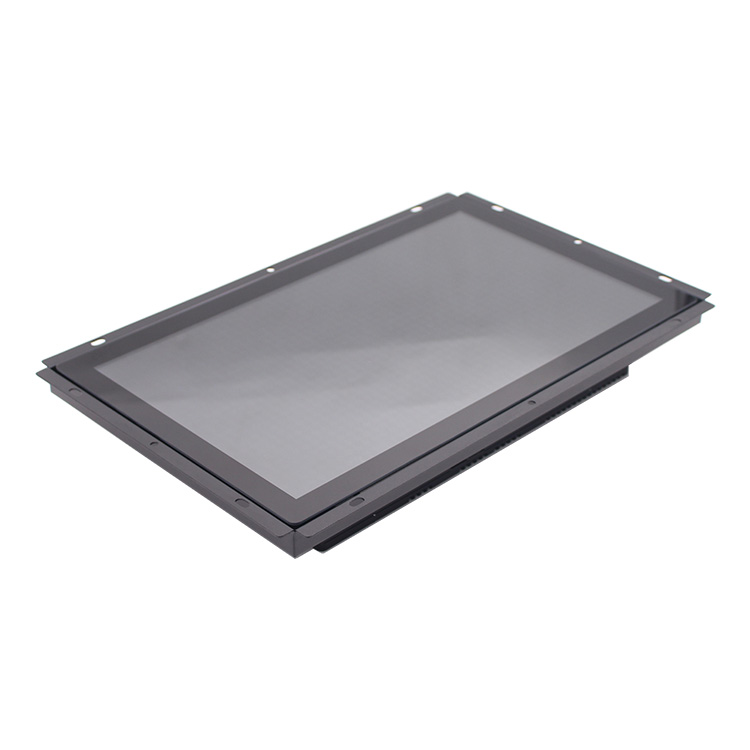

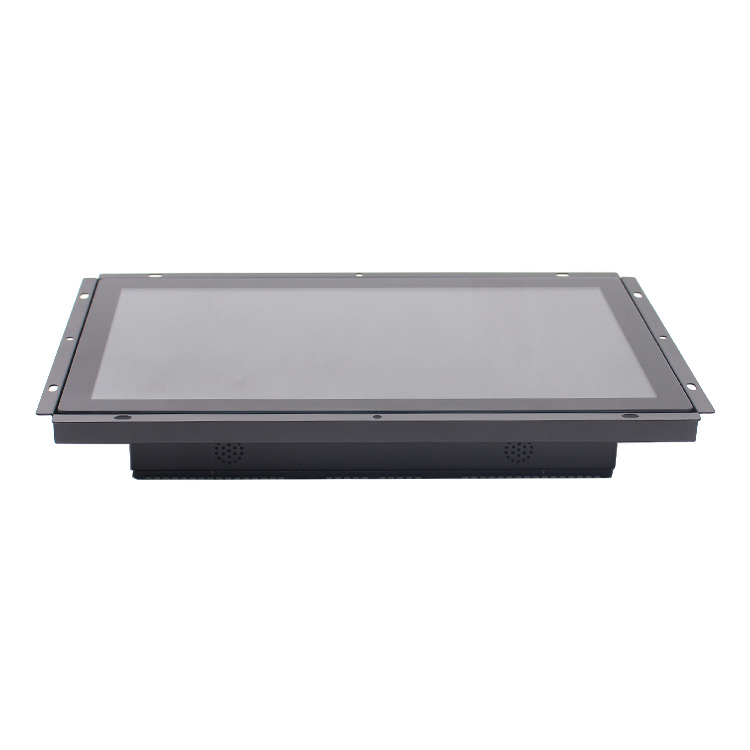

True-Flat PCAP & Dual Speakers
IP65 splash-proof 10-point capacitive glass paired with built-in front dual speakers delivers seamless multi-touch control and instant acoustic alarm feedback.
Technical Specifications
Advanced Hardware & Technology
Frequently Asked Questions (FAQ)
Q1: How do the open-frame flange mounting brackets work?
The unit features four integrated metal flanges with precision pre-drilled holes extending from the sides of the display. Integrators can slide the panel PC into a cabinet or kiosk cutout from behind or the front, and securely screw it into the internal frame, ensuring a flush, vibration-proof fit without custom brackets.
Q2: Can this panel PC operate reliably in hot, unventilated enclosures?
Yes. With its heavy-duty aluminum finned rear chassis, the unit dissipates heat via passive conduction and convection. It supports 24/7 continuous operation in temperatures from -20°C to 60°C without requiring internal fans, preventing thermal throttling even in sealed cabinets.
Q3: Can we customize the display brightness or processor specs?
Absolutely. We offer flexible ODM/OEM configurations including:
Processors: Intel Celeron J6412 up to Intel Core i3 / i5 / i7 processors.
Display: Optical bonding, anti-glare/anti-reflective coatings, and high-brightness panels up to 1,000 nits for outdoor sunlight readability.
Power: DC 9V–36V wide-voltage power modules for automotive or factory DC bus systems.
Branding: Silk-screen logo printing and custom flange bracket dimensions.
Need a Customized Marine or Industrial Washdown Solution?
Get in touch with Rostar engineering team for sample testing, custom pinouts, and volume pricing.
