Built for Harsh Machine Control Enclosures & Hygienic Industrial Automation
In modern processing plants, washdown environments, and automated CNC lines, standard industrial displays quickly succumb to corrosive moisture, airborne dust, and high electrical motor interference. The Rostar Tech 15″ Rugged Stainless Steel Industrial Panel PC bridges heavy-duty structural endurance with ultra-responsive HMI computing.
Engineered with a precision-machined brushed stainless steel front bezel and 7H impact-resistant tempered glass, the unit seals seamlessly into cabinet cutouts to achieve full IP65 front-panel water and dust protection. Under the hood, an energy-efficient Intel embedded architecture operates completely silently inside a finned extruded aluminum chassis, eliminating failure-prone cooling fans while maintaining 24/7 rock-solid uptime across demanding -20°C to 60°C thermal environments.
Key Engineering Highlights
Precision Brushed Stainless Steel Bezel
Heavy-duty SUS304 front frame with a seamless bevel edge for flush cabinet cutouts. Withstands high-pressure water jets, sanitized washdowns, and chemical sanitation without corrosion.
EETI PCAP 10-Point Touch & High EMC Immunity
High-precision EETI touch controller filters out severe electromagnetic noise from VFDs and industrial machinery. Smooth input tracking supports 2mm work gloves and wet, oily hands.

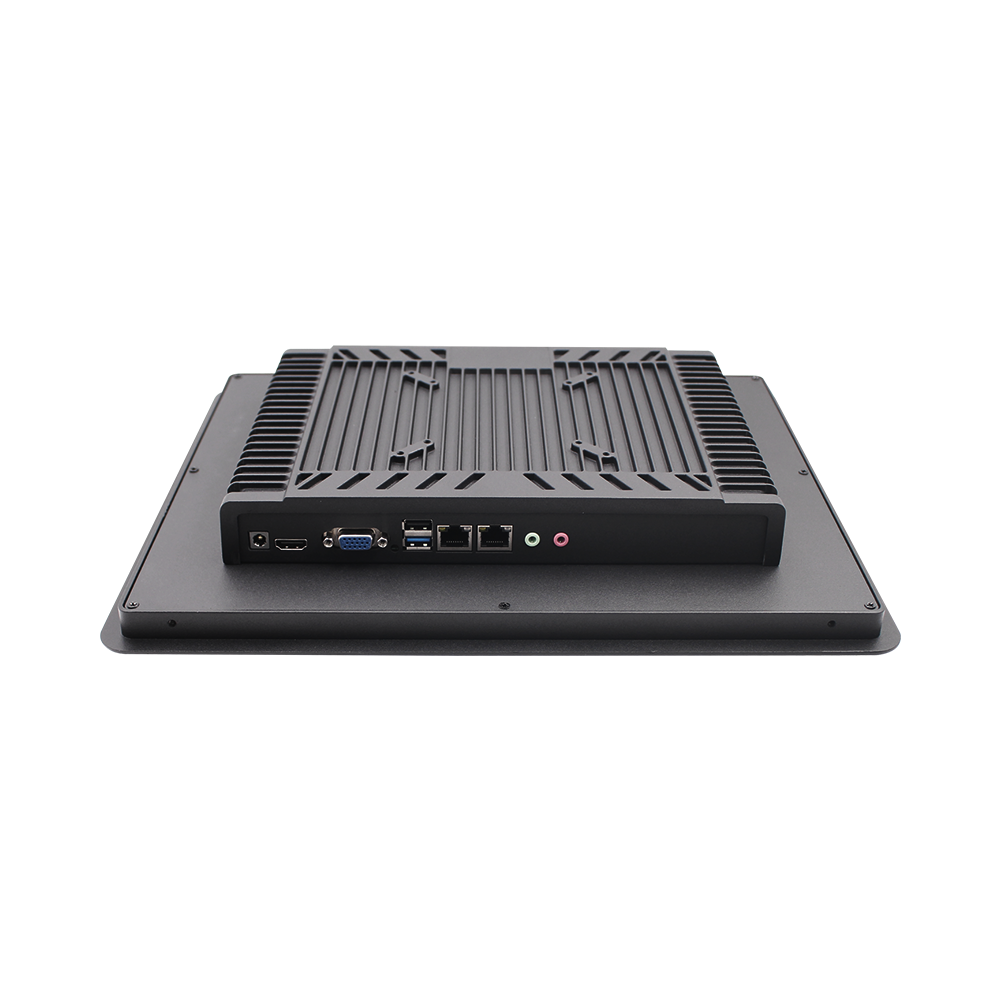

Recessed I/O Bay & Protected Connectivity
Dropped interface cavity routes cables downwards, shielding vital Ethernet, COM, and power connectors from physical snags while saving valuable cabinet depth.

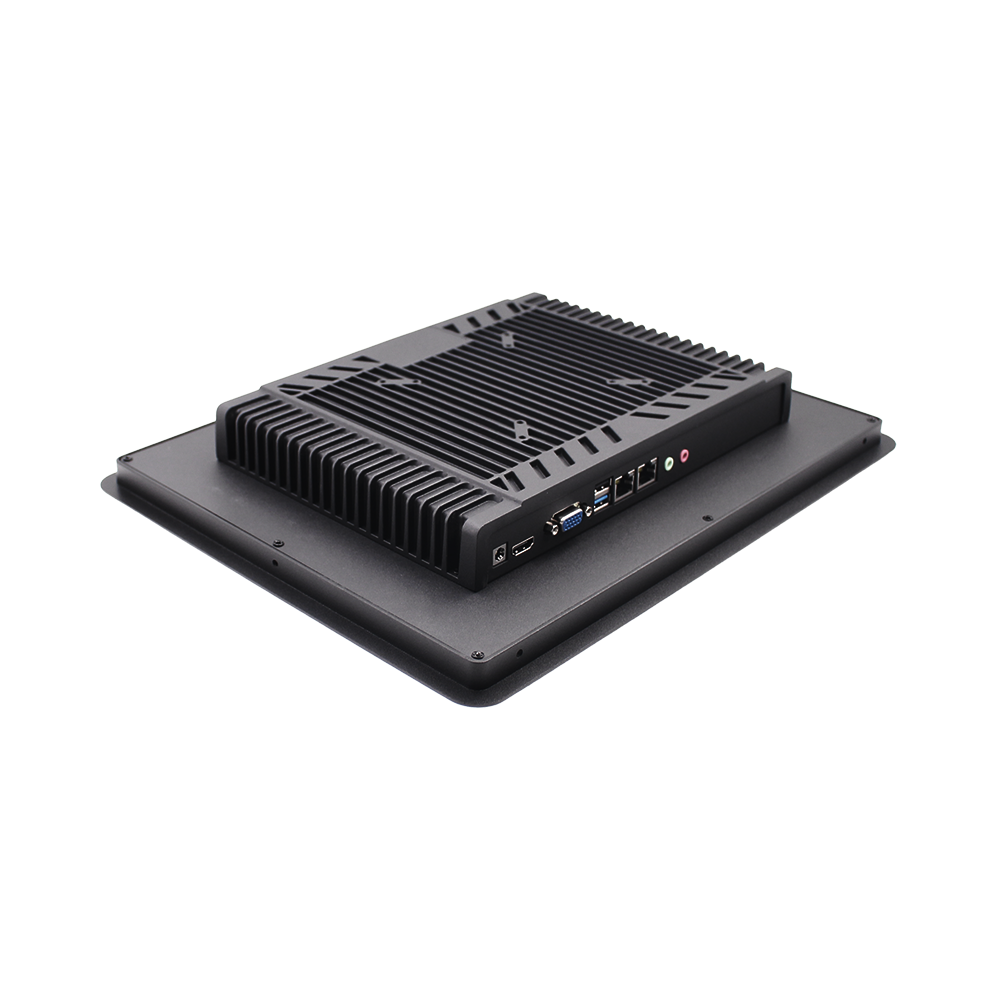

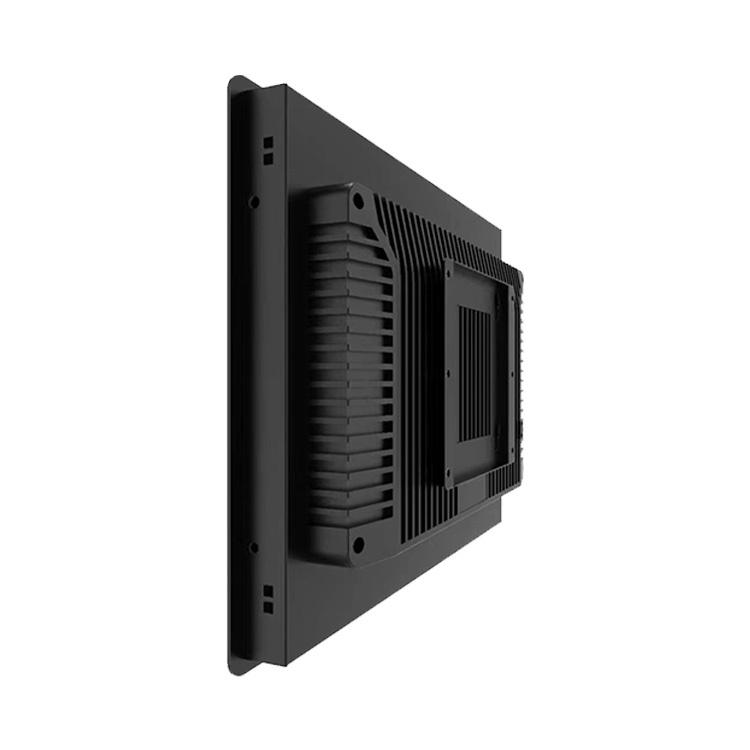

100% Fanless Passive Thermal System
Deep geometric aluminum fins conduct CPU thermal energy away silently via natural convection, preventing internal dust accumulation and mechanical fan failure.
Technical Specifications
| System Parameter | Specification Details |
|---|---|
| Processor (CPU) | Intel Celeron® J1900 / J4125 / J6412 / J6413 (Optional: Intel® Core™ i3 / i5 / i7) |
| Memory | 8GB DDR3/DDR4 (Optional: 4GB / 16GB / 32GB) |
| Storage | 64GB / 128GB SSD (Optional: 256GB / 512GB / 1TB SSD, 2.5" HDD) |
| Operating System (OS) | Windows 10 / 11 Pro, Windows 10 IoT Enterprise, Linux (Ubuntu, Debian, CentOS) |
| Screen Size | 15" TFT LCD (15" / 17" / 19" available upon request) |
| Resolution | 1024*768 / 1280*1024 |
| Aspect Ratio | 4:3 / 5:4 |
| Brightness | 350 cd/m² (Optional 1000+ nits sunlight readable) |
| Touch Type | Projected Capacitive (EETI PCAP 10-Point Multi-Touch) / 5-Wire Resistive / Non-Touch |
| Touch Durability | ≥ 50 Million Touches (7H Surface Hardness Tempered Glass, Glove & Wet-Finger Operable) |
| Standard I/O Ports | 1~2× RJ45 GbE LAN, 4× USB (2× USB 3.0 + 2× USB 2.0), 1× HDMI, 1× VGA, 3× RS232/485 (DB9), 2× 3.5mm Audio Jacks (Mic-in / Line-out), 1× DC Jack, 1× DC 9–36V Phoenix Terminal, 1× Power Switch |
| Power Input | Standard DC 12V (Optional Wide-Voltage DC 9V–36V Input) |
| Enclosure Material | Brushed SUS304/316 Stainless Steel Front Bezel + Extruded Aluminum Finned Chassis |
| Ingress Protection | IP65 Sealed Waterproof & Dustproof Front Bezel (Flush Mount) |
| Housing Color | Silver (Stainless Steel Front) + Black (Rear Chassis) |
| Mounting Options | Flush Mount (Clamps included), VESA 75×75 / 100×100 mm |
| Cooling Architecture | 100% Fanless Passive Cooling (Heavy-Duty Aluminum Finned Chassis) |
| Operating Temperature | -20°C to 60°C |
| Certifications | CE, FCC, RoHS |
Advanced Hardware & Technology
Frequently Asked Questions (FAQ)
Q1: Can the front stainless steel bezel withstand high-pressure chemical washdowns in food plants?
Yes. The front bezel is precision-machined from SUS304 (optional marine-grade SUS316) stainless steel and sealed with an industrial perimeter gasket. When flush mounted into your enclosure, it meets IP65 protection standards, guarding against high-pressure water sprays, disinfectants, steam, and abrasive detergents.
Q2: Does the capacitive touch screen work with thick gloves and in the presence of water droplets?
Absolutely. Equipped with an industrial-grade EETI controller and specialized noise-filtering algorithms, the 10-point PCAP screen supports operations with work gloves up to 2mm thick, as well as tracking with wet or greasy fingers without unintended false touches.
Q3: What are the benefits of the recessed I/O design during cabinet assembly?
The dropped I/O cavity directs power, network, and communication cables straight downwards. This prevents cables from bending excessively against the enclosure backplate, protects connectors from mechanical shearing, and cuts down required interior cabinet mounting depth by up to 40%.
Need a Customized Marine or Industrial Washdown Solution?
Get in touch with Rostar engineering team for sample testing, custom pinouts, and volume pricing.
