Operating system | Windows10/Linux |
CPU | Intel J1900/J6412/i3/i5/i7 |
Memory | 4/8/16GB DDR3/DDR4 |
Storage | 64/128/256GB SSD |

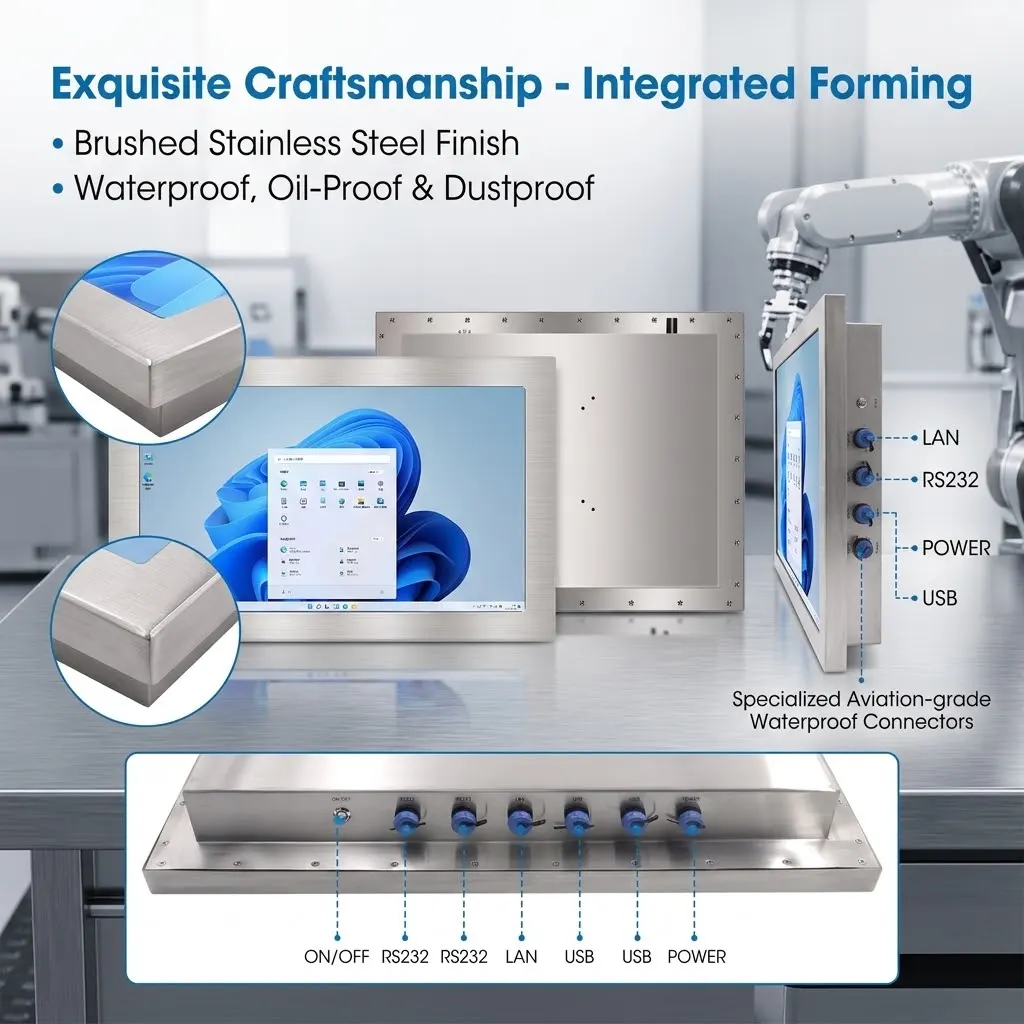

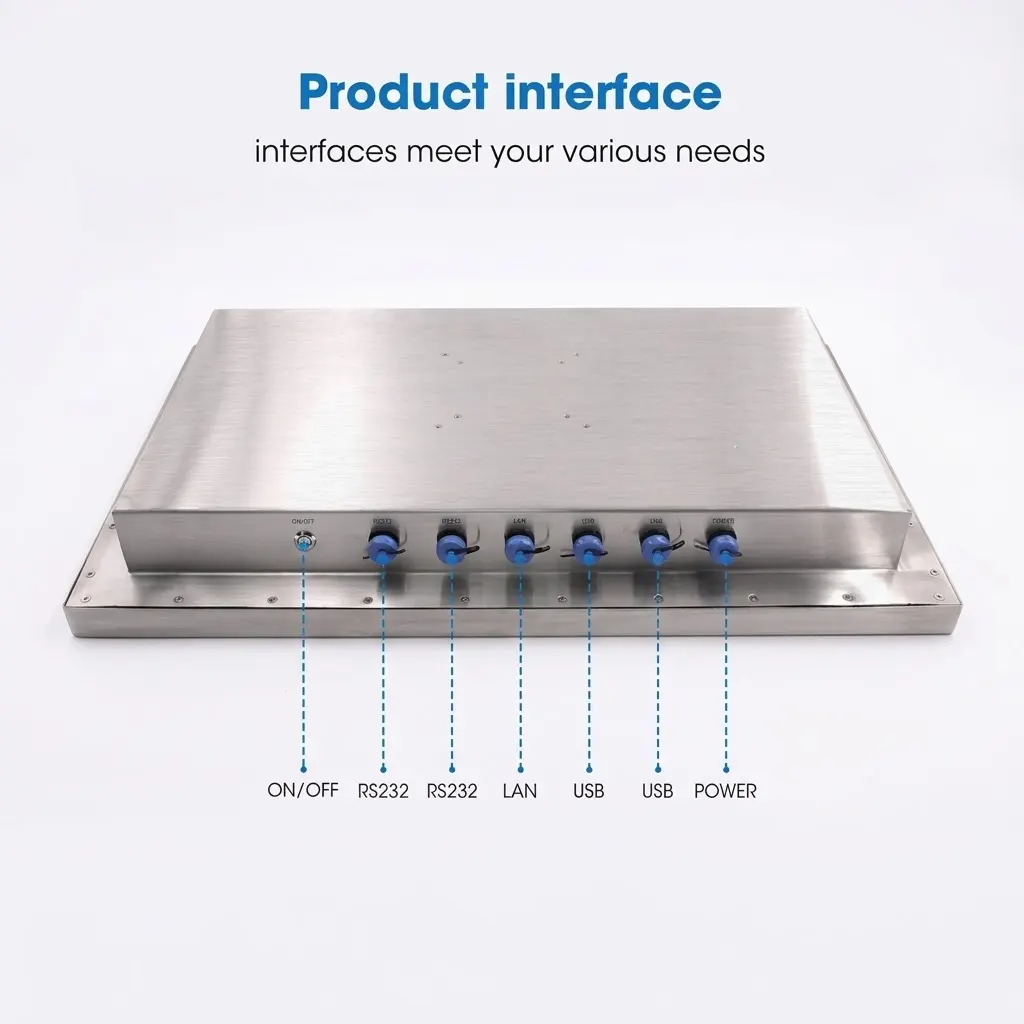

I/O Ports | 1*RJ45+4*USB+2*RS232 |

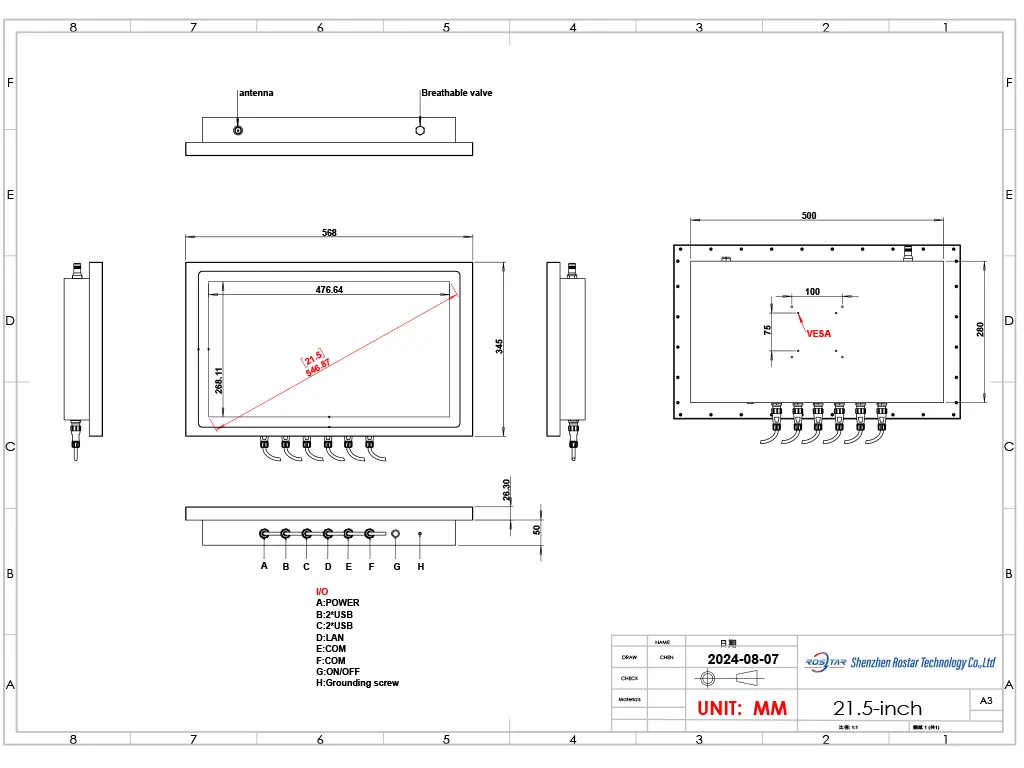

Screen Size | 21.5 Inch (support 7~55 inches) |

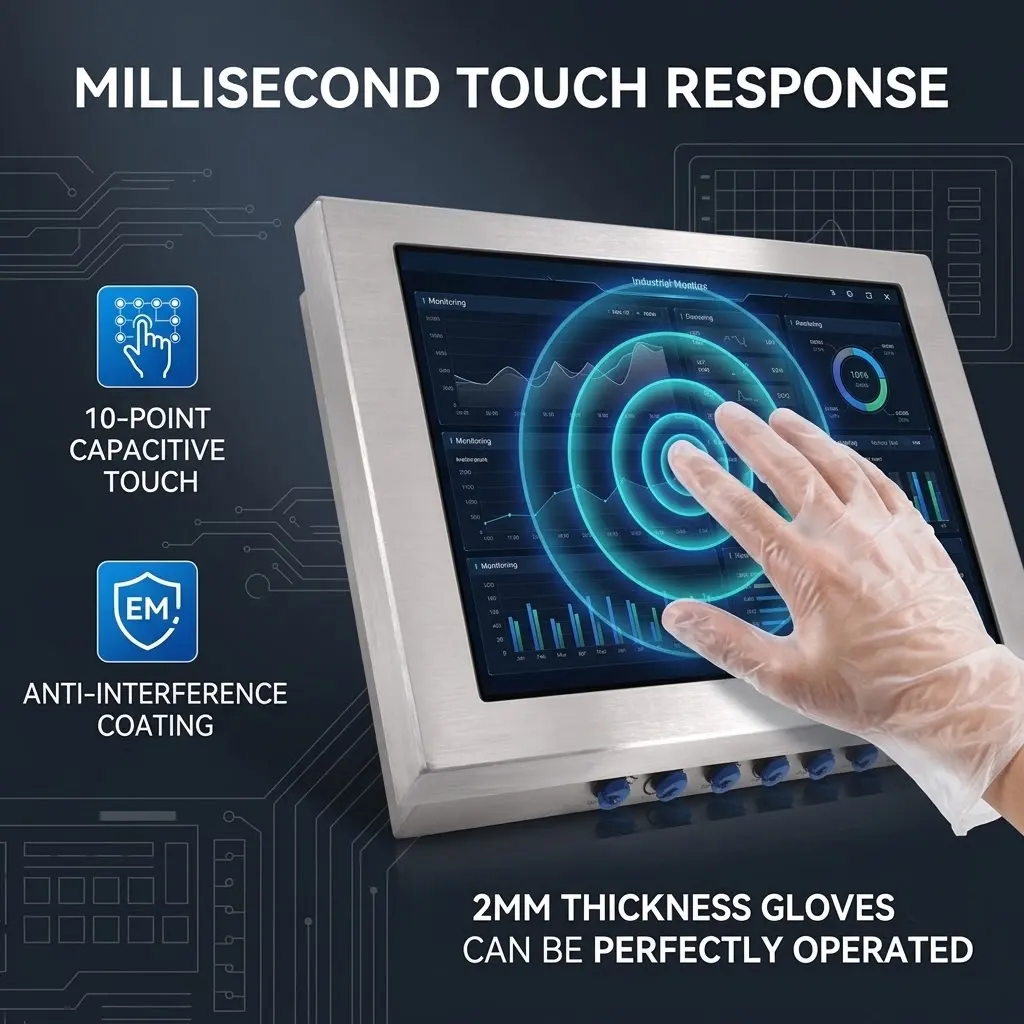

Touch type | 10 Points Capacitive Touchscreen(EETI Solution) |
Resolution | 1920*1080 |
Power Supply | DC 9-36V Input |

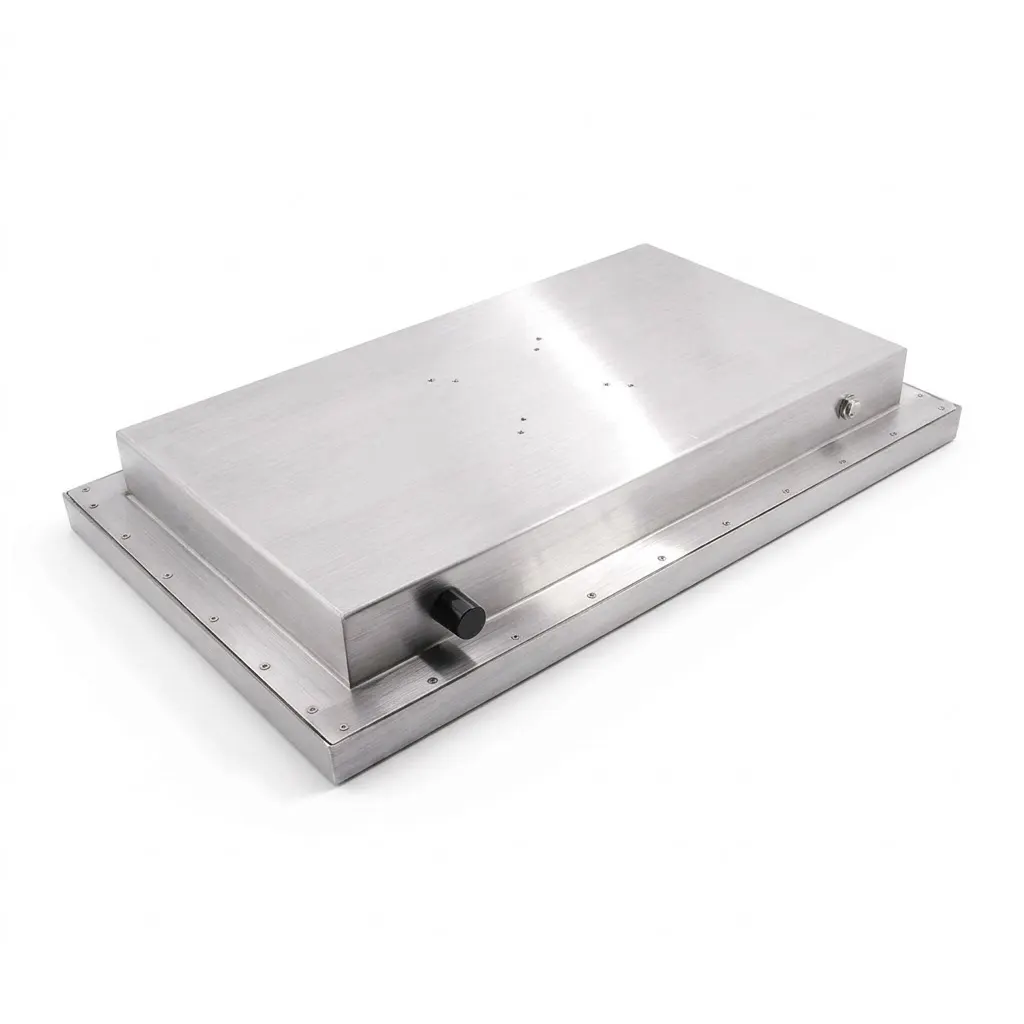

Housing | Stainless Steel (SUS304) |

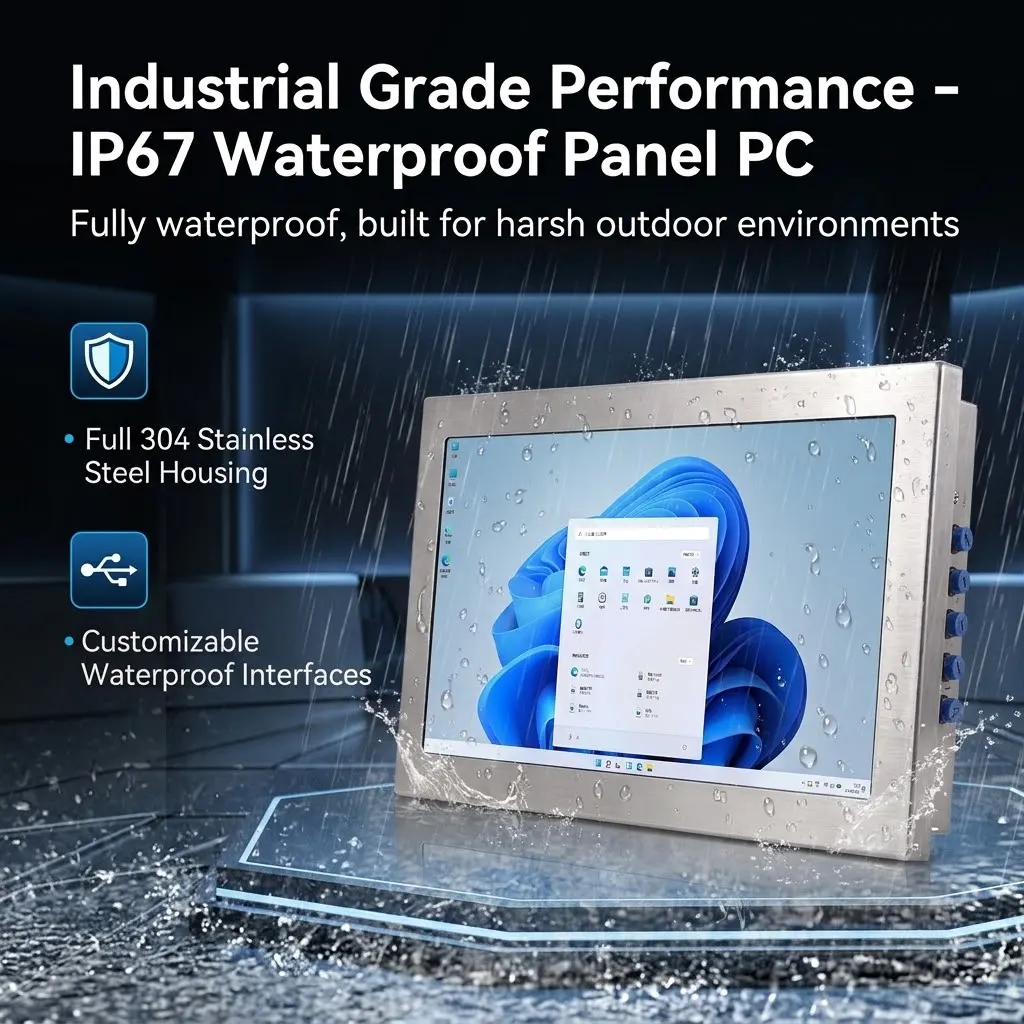

Waterproof Grade | IP67 |
Mount | Wall Mount |
Color | Silver |
Certificate | CE,FCC,RoHS |
Customization Scope for this model
Display & Touch Screen Tailoring:
Screen Sizes: Complete range from 7″ to 55″ with high-definition and wide-angle viewing options.
Sunlight Readable Enhancements: High brightness upgrades from 500 up to 2500+ nits with automatic ambient light sensors.
Optical Treatments: Anti-Glare (AG), Anti-Reflective (AR).
Computing Performance & Motherboard Options:
CPU: Support for Intel Celeron J1900/J6412, Core i3/i5/i7 processors, or low-power ARM architectures (Rockchip RK3568, RK3576,RK3588).
Operating System Pre-installation: Windows 10/11 IoT Enterprise, Ubuntu, Debian Linux, or custom Android with rooted OS access.
Tailored I/O Interfaces & Connectivity:
Flexible Port Selection: Custom configurations for RS-232/RS-485 serial ports, GPIO, and dual Gigabit LAN ports.
Ingress Protection (IP): IP67/IP69K, dust/water resistance.
